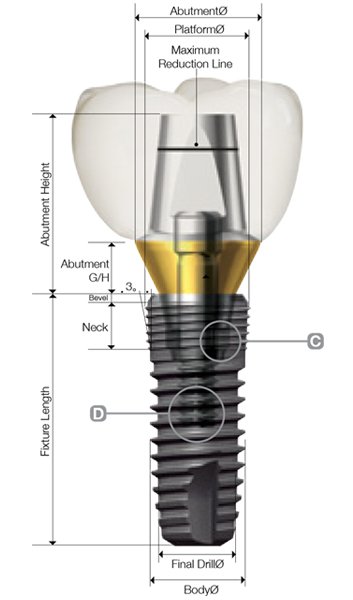

Microscopic characteristic of fixation
- Level of S.L.A.
- Microtrode surface in the platform area
- Cutting edges at the bottom of the fixture and self-tapping property
- Hex internally identical in all fixtures
- Reverse buttress design threads
- Flat design of the end of the fixture
- Bevel design in the fixture platform area
- 6-way conical interior design for connecting abutments to fixtures
Length of fixtures
mm 8,10,12,14 mm
Diameter of fixtures
Platform Ø 3.6, Body Ø 3.4
Platform Ø 4.0, Body Ø 3.8
Platform Ø 4.5, Body Ø 4.3
Platform Ø 5.0, Body Ø 4.8
Type of implant-abutment connection
6-way conical interior design
Types of abutments
Abutment level:
Dual Abutment, Combi Abutment
Fixture level:
Dual Abutment, Dual Milling Abutment
Angled Abutment, Direct-Casting Abutment
Metal Casting Abutment,
Temporary Abutment (Plastic & Titanium)
Screw retained (Abutment level):
Screw Abutment, Angled Screw Abutment
For denture use:
, Positioner Attachment, Ball Attachment, Magnetic Attachment
Certifications and Standards
KFDA, FDA, CE, ISO 13458, ISO 9001
Accessories
Surgical Kit- Drill Stopper Kit- Prosthetic Kit- Planning Kit- Implant Guide- Help Kit, ...
