High Speed Tubular Bowl Centrifuge

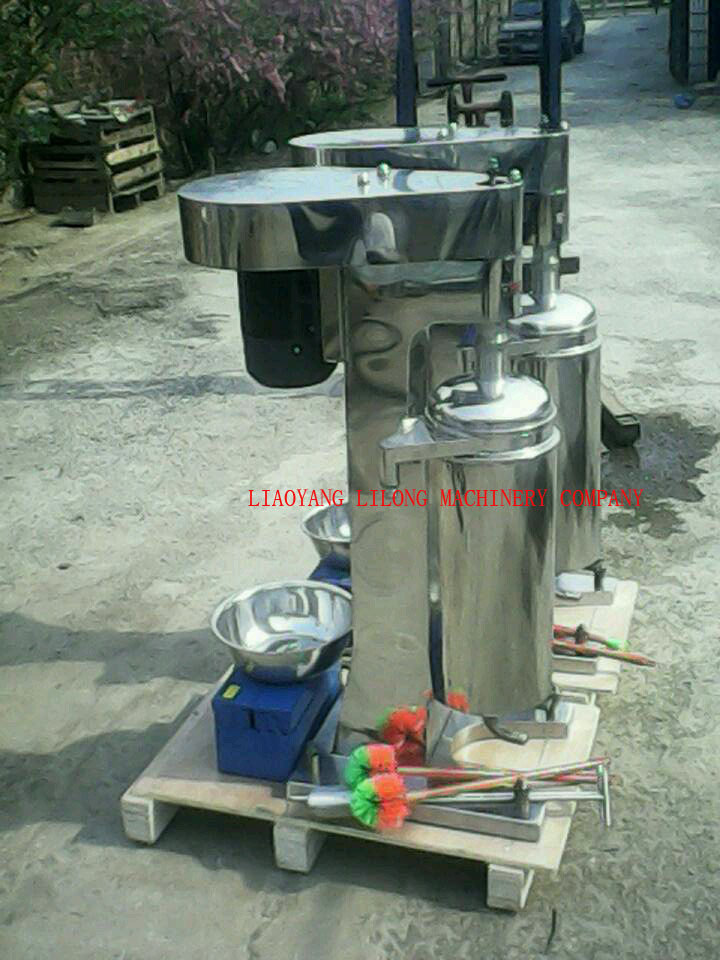

High-Speed Tubular Bowl Centrifuge
High-speed Tubular Bowl Centrifugeis widely used in a variety of biological processes from cell
harvesting and clarifying to separations of chemicals, foods, blood and pharmaceuticals.
The centrifugeis characterized by their ability to process many times the volume of their tubular bowl.
Fluid mixtures are fed into the bottom of the rapidly rotating separating chamber of the centrifuge.Solids
are retained, while liquid components are expelled from the top of the chamber through a collection tray.
For liquid-liquid separations, two collection trays are used. The retained solids cake is dry and densely
packed by the high G-forces of the High-speed Tubular Bowl Centrifuge.
The most difficult separation tasks can often involve three phases, with hardly any difference in the density
of the separate liquid phases and with the particles to be separated very small in size. In such applications,
no other technology can compete with High-speed Tubular Bowl Centrifuge technology.
The optimum size centrifuge for a given application depends on the volume and properties
of the process liquid. Typical process volumes specified for each centrifuge are approximate.
TubularBowl Centrifugeoperateathighspeed,generatingupto20,000gravitiesofcentrifugalforce,
causingsolidstocollectinsidethesmoothboreofthestainlesssteeltubewheretheyareeasilyrecovered.
TubularCentrifugesareanexcellentreplacementformanytraditionalfilterandmembraneapplicationsdue
totheirhigh efficiency(virtuallynoproductloss)andsmallfootprint.
TubularBowl Centrifuges have two types: GF TubularBowl Centrifuge and GQ TubularBowl Centrifuge
High-Speed Tubular Bowl Centrifuge
parameter
model GQ(F)45A GQ75A GF(Q)105A GQY125A GQ150A
item GQ(F)45J GQ75J GF(Q)105J GQY125J GQ150J
bowl diameter(mm) 45 75 105 125 142
effective height in mm(mm) 280 430 730 735 700
settling volume L(L) 0.45 2 5.5 7.4 10
speed(r/min) 0-28000 20000 16000 15000 14000
max separation factors 0-19800 16770 15025 15500 15570
nozzle diameter(mm) 2.3 2.3.5 4.6.8.10 6.8.10 8.10.12
inlet pressure(Mpa) >0.05 >0.05 >0.05 >0.05 >0.05
capacity(kg/h) ≈100 ≈500 ≈1200 ≈2000 ≈3000
motor type universal motor Y90S-2 Y90S-2 Y90L-2 Y100L-2
power(kw) 0.6 1.5 2.2 3 3
speed(r/min) 0~4500 2840 2880 2880 2880
size(mm) 580×650×750 800×400×1200 800×700×1400 850×500×1600 800×700×1600
weight(kg) 120 300 400 610 520
