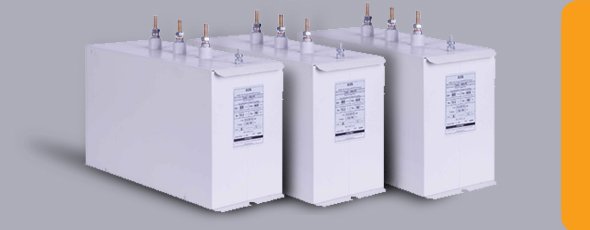

Capacitor Banks (ODS / B Cylinder Box)

It consists of three phase cylindrical capacitors with triangular connection
These banks are manufactured to IEC3 (1/5)
Polyamide fiber insulator with high mechanical and thermal resistance
Non-explosive
Self healing and thus maintaining capacity within the permissible limit of life
Voltage of 1, 2 and 2 volts at frequency 1 Hz
Operating temperature from -0 to + 1 ° C
Over Voltage Allowed: 1 / 2UN
Allowed 1 / 2IN current
The test voltage between terminals is ۱۵ 0.5 for 2 seconds
Test voltage between terminals and body: 1V for 2 seconds
Internal capacitance losses of less than 2.5 W for each kilowatt
Fuzzy Mechanical Performance in Over Pressure Disconnector System
Discharge resistance such that it drops below 1V for a maximum of one minute when the capacitor is disconnected
The oil used inside the cylinders is environmentally friendly (NON PCB).
