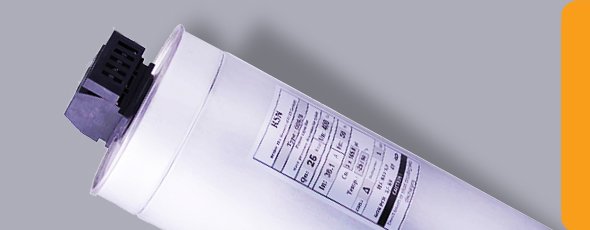

Capacitive banks (ODS / C۳ cylinder)

It consists of three phase units with a triangular connection
These banks are manufactured in accordance with the IEC3 standard
With high thermal and mechanical resin insulators
Over Pressure Ballanced System with the highest safety factor
Oil Circulation and Heat Exchange System in Highly Harmonic Applications
Self healing and thus maintaining capacity within the permissible limit of life
Voltage of 1, 2 and 2 volts at frequency 1 Hz
Working temperature from -5 to -5 degrees Celsius
Over Voltage Allowed: 1 / 2UN
Allowed 1 / 2IN current
The test voltage between terminals is ۱۵ 0.5 for 2 seconds
Test voltage between terminals and body: 1V for 2 seconds
Internal capacitance losses of less than 2.5 W for each kilowatt
Discharge resistance such that it drops below 1V for a maximum of one minute when the capacitor is disconnected
The oil used inside the cylinders is environmentally friendly (NON PCB).

Saler Company Information

Company : Faraz Gostar Puya
More Information : View
