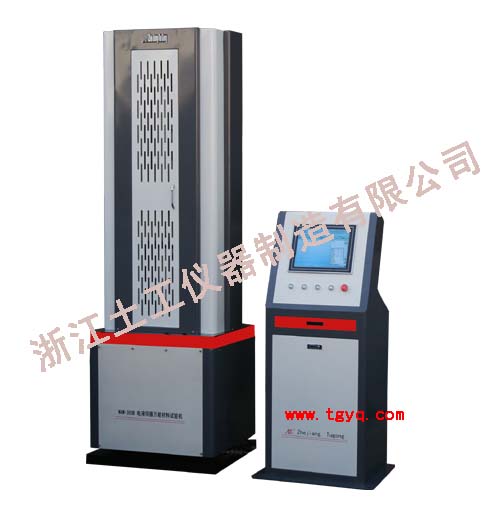

This machine used to do tension test of steel stranded wire, it can used to perform tension, compression, bend, shear test of metal and non-metal material. Oil cylinder of machine is underneath type, can free adjust testing room, automatic hydraulic clamp system, four column of main frame
structure can be adjustable. Use import high quality electronic parts and components for production. Windows platform software.
It has the feature such as automatic calibrate load, distortion, automatic switch measuring range, automatic stock test condition, test result,
automatic count Fm, ReL, ReH, RP0.2, RP0.05, Rm and elastic modulus E et.. It has the function of dynamic display test data and curve when test, data edition, browse test curve, magnification, superposition, comparison et., can print complete test report and test curve.
Max. testing power:2000kN,1000kN,600kN
Testing range:0-1000kN,0-600kN
Error:<±1%,<±0.5%
Max. tension distance:1000mm
Piston distance:250mm
Working voltage:AC380V
Power of oil pump motor:2.0kW,1.5kW
Features:
1. 4 upright posts, hard chromeplated, easy installation of hydraulic jaw, tension fractureposition in the middle of specimen.
2. With high quality parts, imported motor, thick steel column, plates and beam
3. Noncorrosion column and screw poles to ensure long time application
4. Using servo motor driven mute pump
5. Steady working
