-Applications

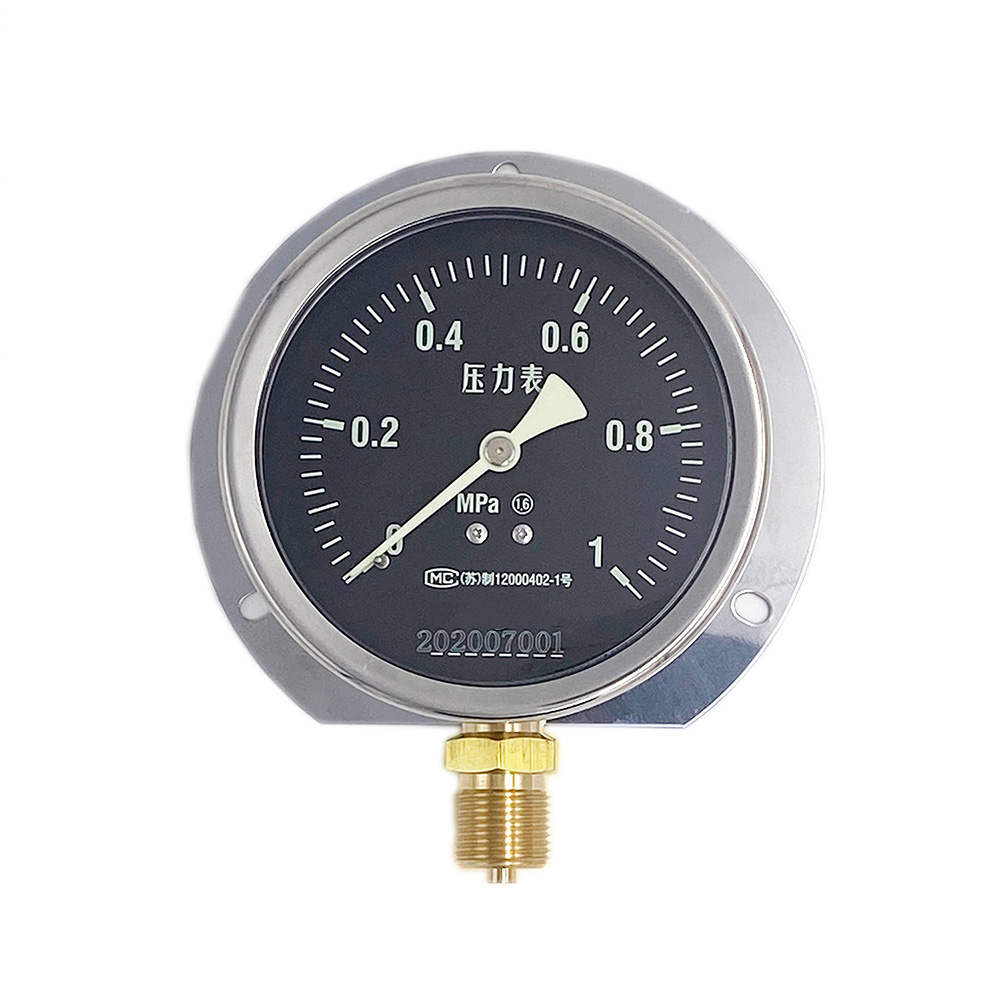

suitable for ships and related equipment. In addition to the general pressure gauge performance, it also has good shock resistance. It is especially suitable for measuring under the mechanical vibration of the ship. It has no corrosive effect on copper alloys, and does not crystallize or precipitate. The pressure of gas, liquid and other media.
- Specifications:
Type：PG-02M
Case: Black steel case
Bezel: Crimped steel
Window: glass
Movement and thread: brass
Bourdon tube: brass
Dial and pointer: aluminum coated with permanent luminous agent
Liquid filled: glycerine oil
Dial: 4"(100mm)
Accuracy:1.6% / 1%
Range: 0+1, 0+4,0+6, 0+25,0+100, -1+0 Bar & Psi, or Customized
Connection:BM (bottom connection)
BMR(bottom connection with rear flange)
BK(central back connection)
LBK(Low back connection)
CBKF(central back connection with front flange)
LBKF(Low back connection with front flange)
BKU(central back connection with U-clamp)
Thread: 1/2"BSP or other
Operating temperature :Ambient: -40+60℃
Media:±60℃
