LRF 1000A Laser ranger finder
  • Seen : 291 View

0

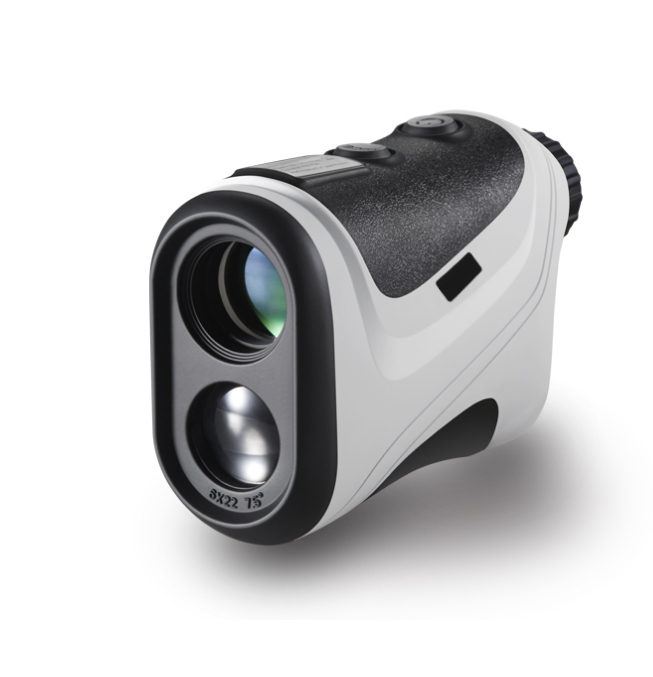

LRF 1000A Laser ranger finder

The L series Laser ranger finder is suitable for measuring high reflectivity objects (such as highway signs), moderate reflectivity (such as building’s wall) and low reflectivity objects (such as trees, golf flag)
LRF 1000A means the laser ranger finder’s Largest distance measured range is 1000 meters, has function of distance,angel,height and speed measuring.
Product Specifications



Technical Data Parameters Remark
Measuring Range 3m-600m
Speed Measuring Accuracy 1M
Measuring Range of Speed 18-300km/h
Function of Measuring Yes/No Speed Yes Optional
Function of Measuring Yes/No Angel No Optional
Function of Measuring Yes/No Height No Optional
Laser Wavelength 905nm
Telescope Magnification 6X
Eyepiece Size 16mm
Object Lens Size 22mm
Exit Pupil Diameter 3.5mm
Field Angle 7.5°
Battery CR2-3V
LCD Illumination Control Yes/No Optional
Security Class 1 Laser Producter
Weight 178g(with battery)
Dimensions 125mmx77mmx45mm
Waterproof IP65 Optional
Operating Temperature 0℃-50℃

Saler Company Information

Company : Shenzhen Leeder Measurement & Control Technology Co., Ltd
Phone : 008675585298089
More Information : View
