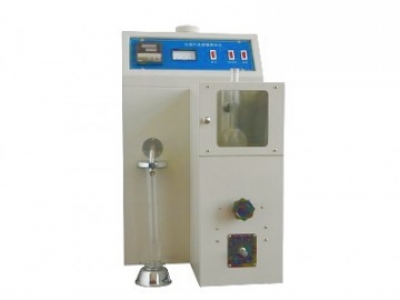

The diesel distillation range test instrument is designed and manufactured in accordance with the requirements specified in ASTM D86. It is suitable for test the distillation range for natural gasoline (stable light hydrocarbons), motor gasoline, aviation gasoline, jet fuel, special boiling solvents, naphtha, petroleum spirits, kerosene, diesel, gas oil, distillate fuels and similar petroleum products.
Main Parameters:
1. Working power: AC220V ± 10%, 50Hz.
2. Electric furnace heating power: 1000W.
3. Measuring cylinder volume: 100 ml, indexing 1 ml.
4. Distillation flask: 125mL.
5. Electric furnace movable plate: Manufactured by silicon carbide plate, the hole diameter is φ38mm and φ50mm respectively.
6. Temperature controller: 1 Temperature control range: 0～90°C arbitrary setting.
2. Temperature control accuracy: ±0.5 °C.
3. Temperature display mode: LED number.
7. Bath heating power: 1800W
8. Ambient temperature: ≤ +30 °C.
9. Relative humidity: ≤ 85%.
10. Power consumption of the whole machine: no more than 3000W.
