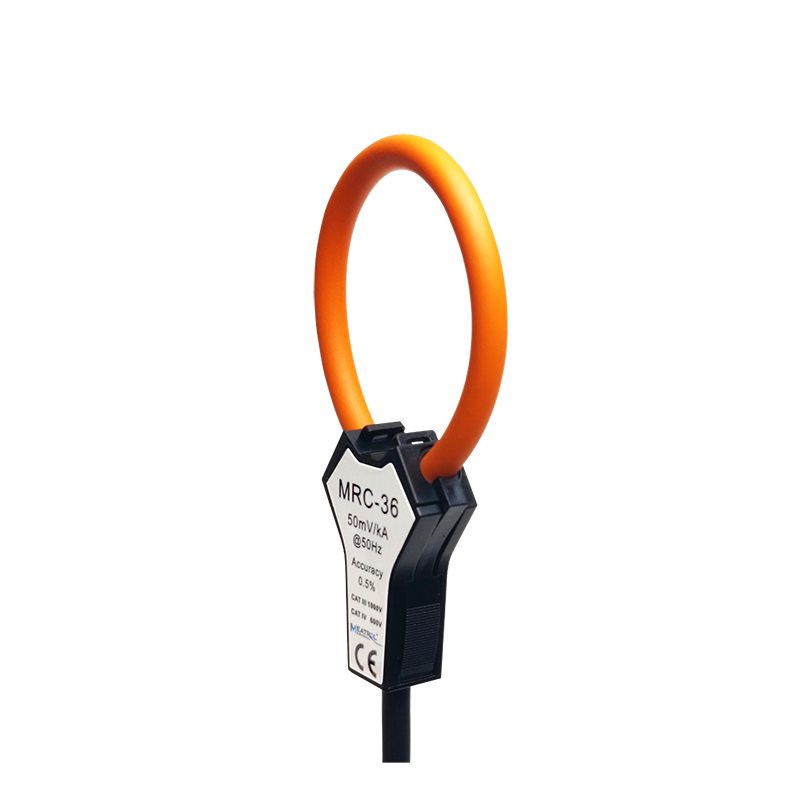

MRC series Ø6 Mini flexible Rogowski coil

The MRC series is a new generation of flexible Rogowski coil (Rogowski® coil) current sensors, which are especially suitable for measuring in combination with portable devices. MRC coils have different sizes to cope with different conductors. The new generation of MRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators. MRC series coils have IP67 protection grade.



Advantage

l Excellent linearity

l Wide dynamic range

l Not damaged by large overloads

l Excellent degree of rejection to the external current conductor

l No danger from open-circuited secondary

l Zero power consumption

l Small position error

l Soft and light, easy to install

l Long-term stability

l Wide dynamic range

l IP67 protection level



Applications

l Smart meter

l Rectifier current measurement

l Power quality analysis

l Motor overload/short circuit protection

l Current monitoring of power frequency and intermediate frequency welding machine

l Medium and high voltage switchgear protection system

l Remote Terminal Unit (RTU)

l Synchronous Phasor Measurement Unit (PMU)

l Current measurement on the secondary side of the electric furnace



Saler Company Information

Company : ROGOWSKI TECHNOLOGY (SHANGHAI) CO., LTD
Mobile : 008618621563567
Phone : 00862164850006
More Information : View
