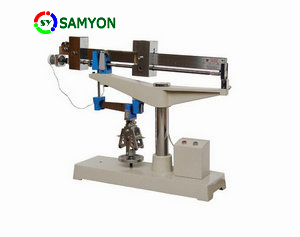

5000N Electric Flexure Testing Device

For flexural strength test of cement specimen and other nonmetallic material.

Standard: GB/T17671、GB3350、BS4550、ISO679

Technical Parameters:
Accuracy: ±1%
Output ratio of single lever: 10:1
Output ratio of double lever: 50:1
Capacity:single lever:1000N Dual lever:5000N
Loading rate:Single lever: (10±1)N/s , Dual lever: (50±5)N/s
Motor Model: SD-75
Flexure jig:
Diameter of the loading and supporting bars: Φ10mm
Central distance between two supporting bars: 100mm
Effective distance between the loading and supporting bars: 46mm
Relative indication error: <±1%
Power: 220V、50HZ、60W
