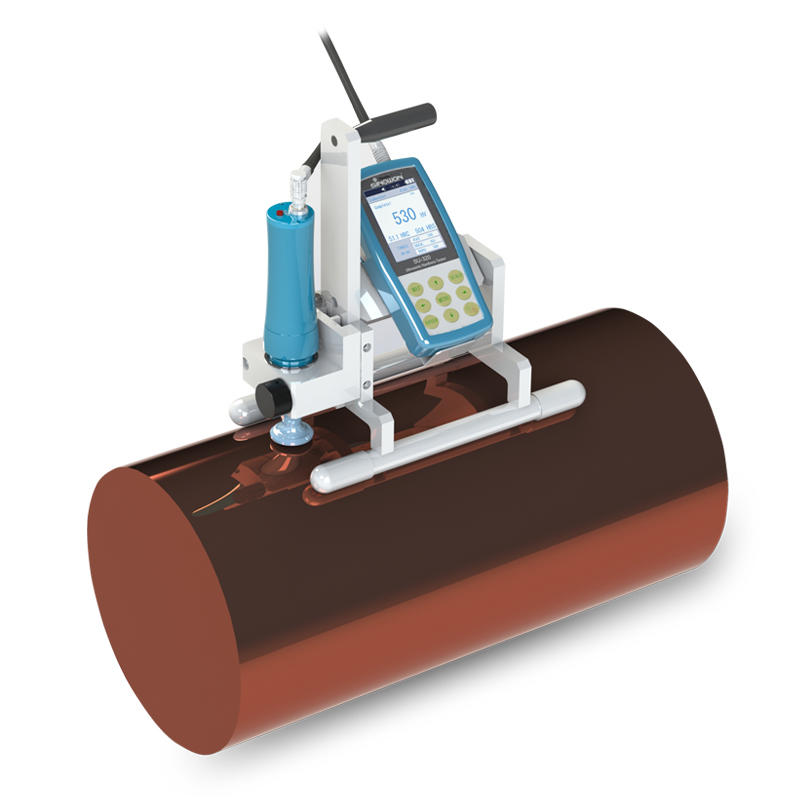

l SU-320R Roller Motorized Ultrasonic Hardness Tester is a professional portable durometer made by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing of copper plating and chrome in the workshop of Rotogravure industry.
l SU-320R standard motorized probe is MP-300 with 3N testing force. 2N motorized probe is option available if the chrome coating thickness is less tan 15um.
l SU-320R conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.
Product Characteristic:
l Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB.
l Microscopic Indentation——the indentation only can be observed by high-power microscope
l Quick Measurement——Result in 6 seconds.
l Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
l Friendly Operation——The precise resultt will be display after one shot press
l Promised Warranty——2-Year warranty for main unit (Excludes Probe).
l Mass Storage——Save 1000 groups measurement data.
l Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.
