Slurry Pump
  • Seen : 135 View

0

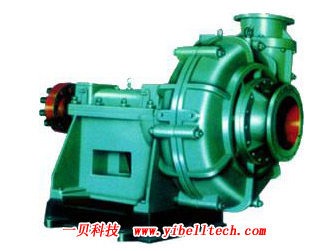

Slurry Pump

(1)Series of KSH Slurry Pump

  Specification: Aperture 20-1000mm; Quantity of flow: 10-25000m3/h; Pumping head: 5-90m.

  The products are popular among the mining, metallurgy, electric power and other industries in all places of China. The company has provided tens of thousands of matching pumps for about one hundred major projects, which include Antaipu Opencast Mine, Qinshan Nuclear Power Station, Shiheng Power Plant, Pingwei Power Plant, the Qilu 300,000 ton ethylene project, Bohai Sea oil drilling platform, Dexing Copper Mine, the second-phase construction of the Baoshan Iron and Steel Group and so on

  (2)Series of TL(R) Slurry Pump

  Specification: Aperture 350-1000mm; Quantity of flow: 1500-14000m3/h; Pumping head: 12-32m.

  The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency. The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced. It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.

  (3)WN Series Dredging Pump

  It is widely applied to dredging, silt clearing and hydraulic filling with rivers and lakes, ports and docks all over the country such as, Yangtze River Basin, Yellow River Basin, Liaohe River Basin, Pearl River Delta, Huaihe river basin, etc. The products are also sold to Europe, Middle East and Southeast Asia.

  (4)Series of ZGB Slurry Pump

  Specification: Aperture: 65-300mm; Quantity of flow: 50-1800m3/h; Pumping head: 50-95m.

  In order to meet the requirements of the development of the electric power, metallurgy and coal industries, our company has designed and developed Series ZGB(P)up-to-date Generation Slurry Pump with large capacity, high head, multi-stages in series to remove ash& sludge and to deliver liquid-solids mixture, based on the experience of slurry pump design and manufacture for many years, and absorbing the advanced technology research results from home and abroad.

  (5)Series KSG Gravel Slurry Pump

  Specification: Aperture: 100-800mm; Quantity of flow: 80-1000m3/h; Pumping head: 5-90m.

  Series KSG gravel pumps are designed for transporting big particle slurries. They can continually deliver most abrasive slurries. They are suitable for delivering slurries from mining, dredging from river and explosive sludge from metal melting and other fields. Series KSG pumps are high head gravel ones.
