although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Main function:
Ozone Aging Test Machine can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; Expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens' surface and the degree of change of other properties to evaluate the rubber's ozone aging resistance properties.
Applicable industries
Ozone Aging Test Machine is widely used to control products quality in measuring quality control; Rubber & Plastics; Automobile production; Wire and cable; Packing materials; Instruments and meters; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratories; Inspection arbitration, and technical supervision departments and other rubber products.

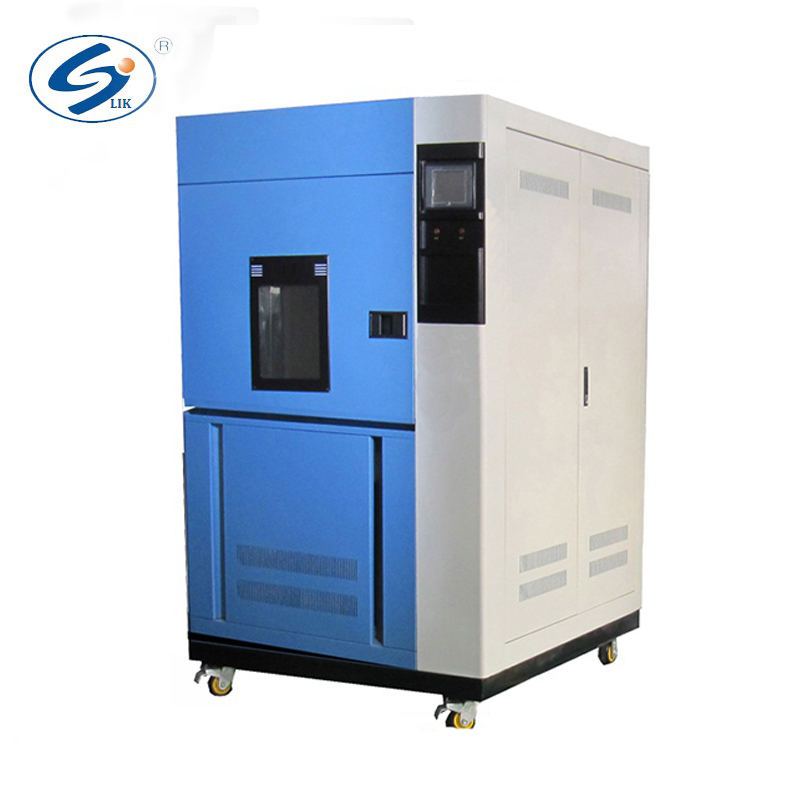

Products image(High Performance Rubber Resistance Ozone Aging Test Machine)
High Performance Rubber Resistance Ozone Aging Test Machine
Specifications and technical parameters
(High Performance Rubber Resistance Ozone Aging Test Machine)
Model QYL-100 QYL-250 QYL-500 QYL-800 QYL-1000
Internal dimensions (cm) 40*50*50 52*63*78 70*80*90 80*100*100 100*100*100
Temperature range RT+10~+70 ° C
Humidity range No humidity, but can produce according to your requirement
Temperature uniformity ±2ºC
Temperature fluctuation ±0.5ºC
Speed rate for cooling Environmental conditional ~ 0ºC within 20 min.
Timing range 0~999 hours
Inside air velocity over 2 feet/sec
Air Flow Speed 12-16mm/S
Ozone produced mode Ozone generator or UV absorption method
Ozone concentration 1~1000PPHM (Adjustable)
Ozone concentration fluctuation 10%
Sample holder rotate speed 0~10 r/min (adjustable)
Clamps tensile stretch 5%~35%
Max. ozone concentration 120gO3/m³
Ozone output 3.5gO3/h ((oxygen input, flow rate 100L/h)
Stretching mode of specimens Dynamic or static stretching
Standard ASTM D 1149; ASTM D1171, IEC60811-403
