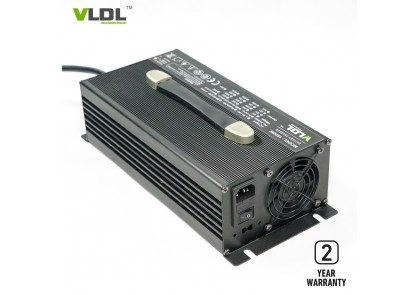

48V 25A Lithium Battery Charger

Brief Description:

Advanced high frequency switching mode power supply technology. Designed for 48V lithium or lead acid battery. Custom-made charging method is available. Single 110V or 230Vac. Rated output voltatge is 48V 25A. Max charging voltage could be 54.6V, 58.4V or 58.8V according to battery types. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off. Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity. Aluminum casing, light weight, portable. Suit to charge 48V e-forklifts, e-club cars or other EVs.


Technical Specs.:

Dimensions(LxWxH): 300 x 150 x 90 mm

Net weight: 5.0 KG

Max charging voltage(CV): 54.6 / 58.4 / 58.8 volt

Max output current (CC): 25 amps

Charging method: Pre-charge, CC, CV, Cut-off

AC input voltage: 110 / 230Vac

AC input frequency.: 50 / 60 Hz

AC plug: customized by user’s country

Output connector type: customized by applications

Enclosure: Aluminum
