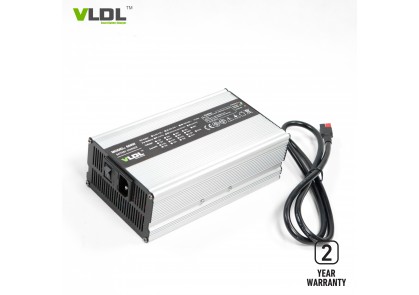

Designed for 12V Lithium racing battery input with 90 - 264Vac with PFC and rated output voltatge is 12V 25A. Smart max charging voltage is 14V / 14.4V or 14.6V Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110-230Vac(90~264Vac) with PFC, 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 230 x 120 x 70 mm
2) Net weight: 2.5 KG
3) Max charging voltage(CV): 14.4 / 14 / 14.6 volt
4) Floating voltage: custom-made
5) Max output current (CC): 25 amps
6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 90~264Vac universal
8) AC input freq.: 50 / 60 Hz
