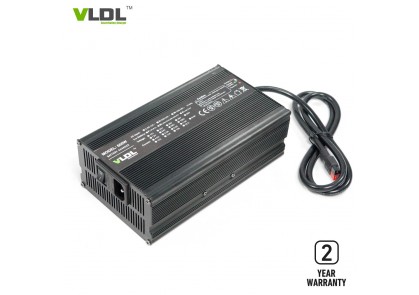

Input 110/230Vac with PFC, rated 48V 10A, max 54.6/58.4/58.8V 10Amps smart charging.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 85%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
