SC2 Pump Controller has been designed specifically to cater for distributed sewage pumping systems. it is a compact wall mounted unit which will manage the operation of a pump motor integral to a domestic waste water collection tank.
Three probes or Float switch within the tank will inform the controller when the tank has been pumped dry, when a tank is in danger of overflowing, or when a normal pump cycle needs to be initiated. The probes may be either submersible float switches or conductive probes set to different levels within the tank.
A number of alarm conditions will be declared and recorded where normal operating parameters have been exceeded.
The unit features an advanced microprocessor controller bonded to the pcb board within the enclosure. Heavy contactors and current overload devices support three phase 380VAC pumps with Start/Run motor windings and an average load current of up to 500 Amps. An integrated dry contact point ensures protection against water leakage faults(optional)

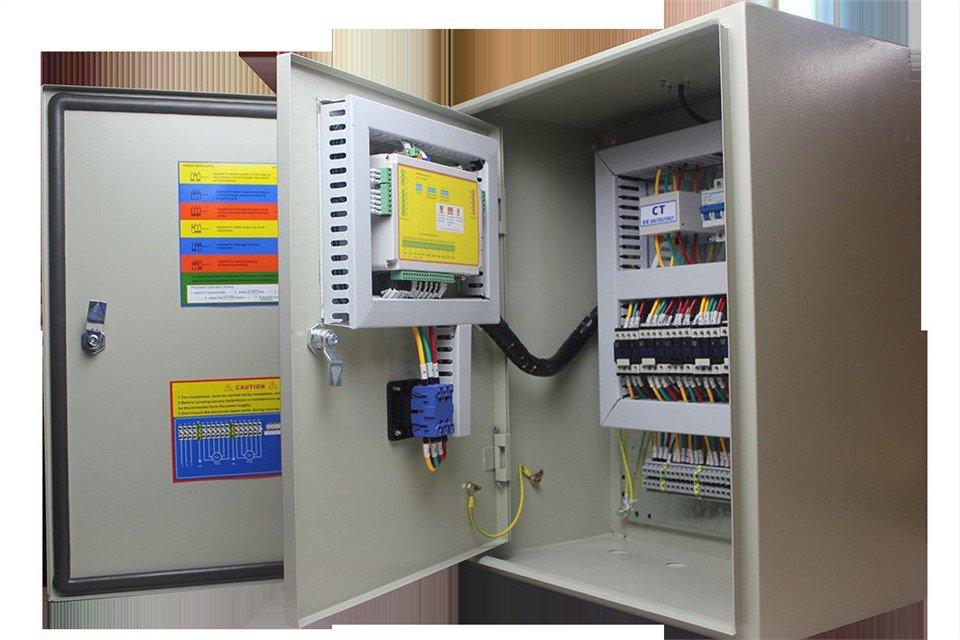

Two-doors cabinet separates all internal wiring from the user console. This allows routine pump operation to be carried out without the presence of electrical staff. (Installation and maintenance of all electrical components will still require the presence of a qualified electrical contractor.)
The cabinet is an extremely tough metal composition, with stainless steel hinge and latches and foam door seals. The cabinet is intended to be wall mounted with brackets provided or vertical position,and cable access may be effected from under of the unit.
2.OTHER FEATURES
Easily setting the different liquid depth for sewage pump operation and observing dynamic liquid
depth in the sump or sewage tank.
● Eliminates the float switch or liquid sensor installed in the sump or sewage tank
● Auto / Manual switch
● Protect the pump against many faults
● Dynamic LCD displaying the real liquid depth
● Dynamic LCD displaying pump running information
● Pump accumulative running time displaying
● Pump last five fault record displaying
