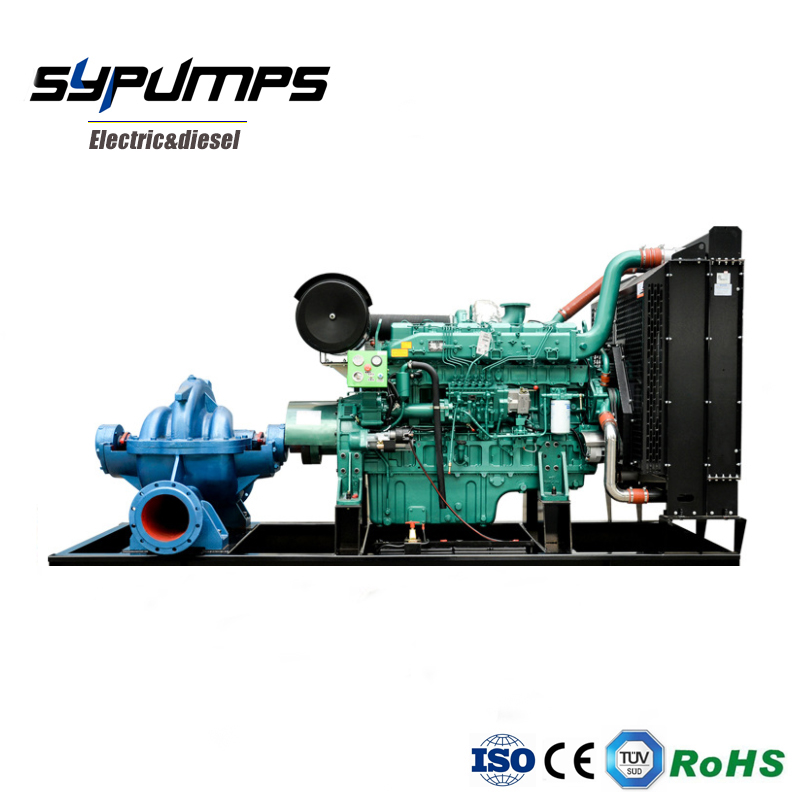

Split Pump is single stage double suction split volute centrifugal pump. Widely used in power plant, irrigation, water works,drainage pumping stations, water circulation in air conditioning,industrial water supply, building water supply, fire control system, ships and other water conditions.Also suitable for general purposes in oil refining industry.
Flow: Q 11600 m3 / h or less head: h 200 m or less pressure: P acuities were 2.5 MPa (5 MPa) temperature: T 120 ºC or less to ensure smooth operation, low noise, long service life.
Performance Range:
· Capacity: Q ≤ 11600 m3/h
· Head: H ≤ 200 m
· Pressure: P ≤ 2.5MPa(5MPa)
· Temperature: T ≤120ºC
Application:
Split Pump are single stage double suction with axially split volute casing centrifugal pumps. The pumps are widely applied in fields of power plant, irrigation, water supply, pump station
for water discharging, circulation water for air conditioner, industry water supply, building industry water supply, fire fighting system, shipbuilding industry, as well as general service in
oil refineries.
Structure Features Shaft :
The shaft is shorten designed with good stiffness and no vibration
The shaft is ensured to contact to liquid so no corrosion to have longer sevice time.
Exchangeable shaft sleeve.
No need of adjusting during assembling.
