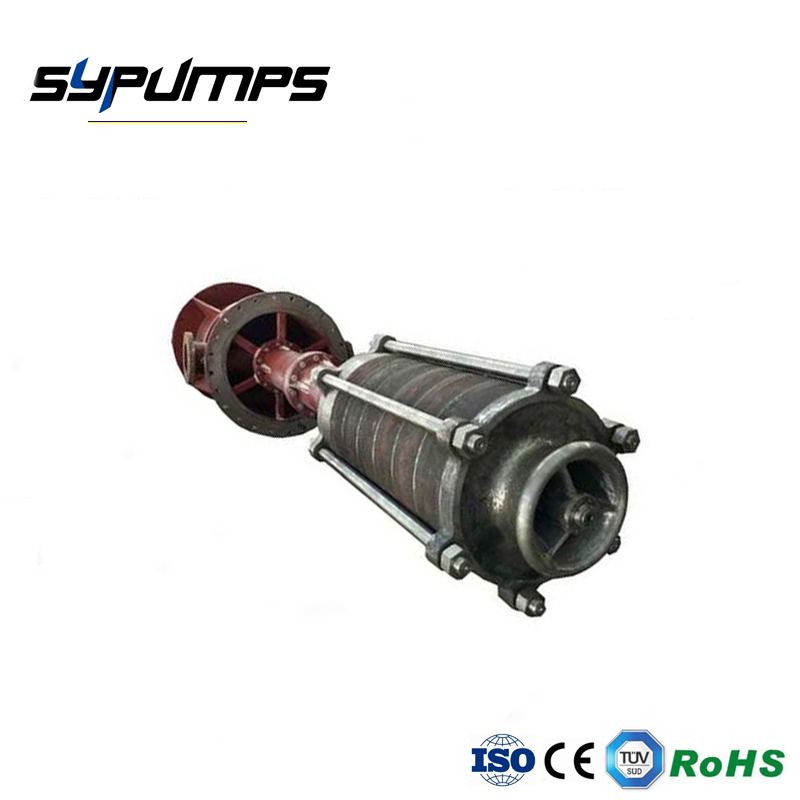

Condensate Pump

Type LDTN and LDTNA Condensate Drain Pump are used for pumping condensating water in condenser of thermal (nuclear) plant, also be used for pumping other media which are

similar to water in physical and chemical proper-tics.It range of performance are as follows:Capacity:85~1940m³/h Head: 48~360m Temperature of medium: 80ºC (special is up to

150ºC)



Performance Range:

Capacity: 85~1940m3/h

Head: 48~360m

Temperature: 80ºC (Special is up to 150ºC)



Structure Features:

Type LDTN and LDTNA Heat-engine Plant Pump are vertical multi-stage columnar pumps. The suction and discharge nozzles of pumps are respectively arranged on the barrel and

discharge seat and both can be altered on place of 180ºC, 90ºC or many degrees. The impeller is closed and the first impeller has two kinds of construction of single or double suction.

Several positions of pump are fitted with water-lubrication bearing so as to bear the radial thrust of rotor. The axial thrust of rotor is balanced by thrust bearing on motor.

Pump rotor and line shaft are connected by cutting columnar coupling and connected by tread columnar coupling for smaller pump. Pump rotor and motor shaft are connected by

flanged solid coupling.Shaft seal is soft-packing, the mechanical seal can be assembled according to the special requirements.

Industry industrial water pumps for sale

Saler Company Information

Company : Shenyang Liancheng Pump Co., Ltd
Mobile : 008613504982316
Phone : 00862466780159
More Information : View
