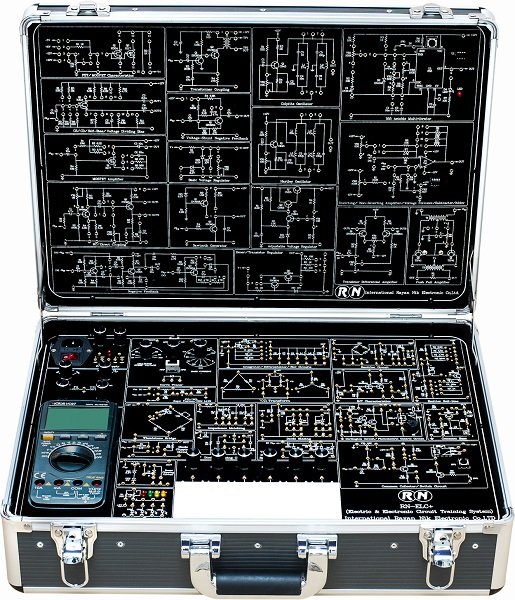

Electric and electronic circuits training system

Educational system + RN-ELC is a specialist unit for teaching circuit boards and electronic circuits (electronics 1 and 2) that are designed and built on the basis of the approved headings of these 3 laboratories. The governing relations of electrical circuits consisting of resistors, capacitors, inductors, diode circuits and transistor circuits are the main axis of the + RN-ELC experiments. For ease of operation, a fixed and variable power supply unit with the function of a sinusoidal, square, triangular, and TTL waveguide is available to the user. A multimeter has also been added to accelerate the measurement and record the results. One of the special features of this training suite is the Quartz System, which allows the user to view the characteristic curve of the diode and transistor for optimal circuit design. In order to simplify transport and protect parts on the board, the device is designed in portable enclosures, which reduces the weight of the set and, as a result, extends the life and durability of the product. There is also a bradboard for the formation of arbitrary circuits and connection with blocks, in this set

Saler Company Information

Company : Rayannik International Electronic
Phone : 00982144338882
More Information : View
