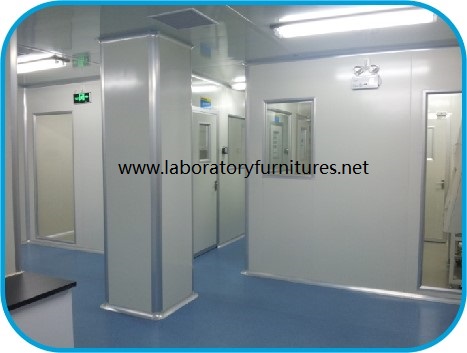

GMP Cleanroom Project for Pharmacy Industry

GMP cleanroom customized project for pharmacy Industry, supported by registered HVAC/Electricity/Pipeline professionals. offering cost performance products.

Cleanroom Floors

1. Epoxy self-leveling flooring:

2. Solvent-free type,

3. Solvent type

4. PVC floor

5. Antistatic type

Remark: Various color is available for different classification if required.

Standard Width 1150mm
Max Length 7500mm
Wall thickness 50mm,75mm,100mm,150mm
Steel Thickness 0.4-0.8mm
Outer plate material PPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,HPL,VCM
Coating PE,PVDF,HDP
Core material PU,rock wool,magnesium board,paper honeycomb,aluminium honeycomb,plaster,EPS, etc.
Frame Thickness 0.6-0.8mm
Application Pharmaceutical Cleanroom, Electronic Cleanroom, Food Cleanroom, etc.
Window

Frame Material Al. Alloy, SS
Glass Tempered glass, fire-proof glass, Smart glass (Laminated)
Thickness 50mm, 75mm, 100mm, can be customized
Glass edge color White, Black
Glass thickness 5mm, 6mm, 15mm
Fill In Desiccant, Nitrogen gas
Window corner Square, Round
Standard size 1000*1000mm, 1000*2100mm, 1800*1200mm, Can be customized
Lamp

1. Purification lamp

Frame Material Al. Alloy, SS
Uniform light distributor PC
Specification 6W, 9W, 12W, 15W, 18W, 20W.
LED LED package light strip with aluminum substrate
Efficiency 85lm/w
Lifetime 3 years.
Working Temperature -10 ~ +40oC
Working Humidity <80%>
Engergy saving above 80%
IP Class
IP20, IP54
2. Full covering lamp
Stainless shell, T5,T8 saving lighting.
Specification: 1x20W, 1x30W,1x40W,2x20W, 2x30W, 2x40W.

Other System

1 Electric: Switch, Cables, Wires, Power Distribution Cabinet, etc
2 HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc.
3 Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel
4 Process Piping System: Gas, Water Pipeline
Main Cleanroom Equipments

1 Static/dynamic pass through box
2 Air shower
3 Sampling and weighing booth
4 Laminar air flow/FFU
5 Hand disinfector and dryer
6 Gowning lockers and benches
If you are interested in setting up cleanroom, pls don’t hesitate to contact with us. Our registered HVAC/Electricity/Pipeline engieers are ready to serve for you any time.
