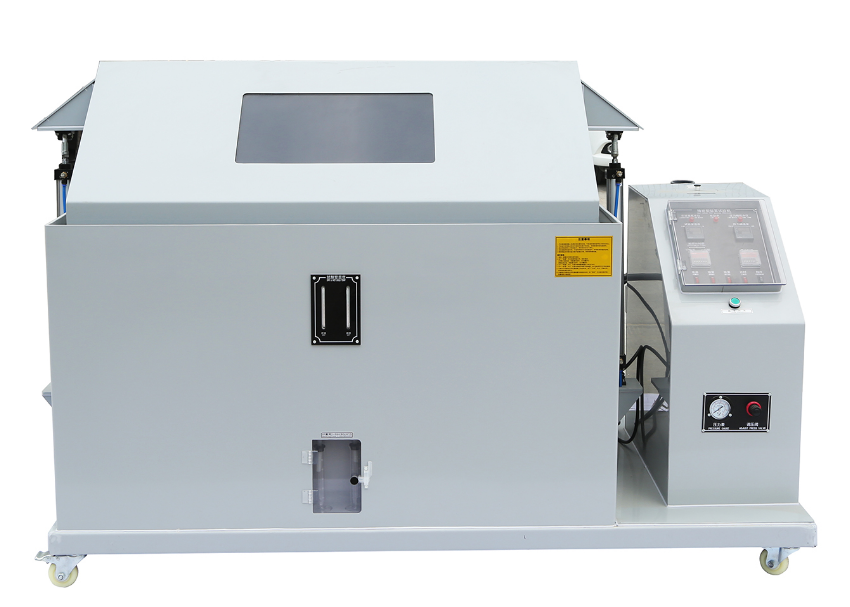

Salt Spray Test Chamber (600L) ZH-SH-120 (A)

Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.

Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test :
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical parameters:

Model ZH-SH-60 ZH-SH-90 ZH-SH-120 ZH-SH-160 ZH-SH-200
Internal Dimension WxHxD (mm) 600x450x400 900x600x500 1200x800x500 1600x800x500 2000x1000x500
External Dimension WxHxD (mm) 1100x600x1200 1400x950x1200 1900x1300x1400 2300x1300x1400 2700x1500x1500
Lab Temperature Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C
Lab Capacity(L) 110 270 500 800 1500
Saline Capacity(L) 15 25 40 40 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Exter./Inter.Material P.V.C & P.P
Compressed Air Pressure(Kgf) 1.0~6.0
Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Power AC220V , lines15A
Weight(Kg) 65 80 120 160 200
System Salt Spray Vehicle Air+acid(base)liquid
Heating SUS#304 & #316stainless steel heater+taflon
Controller Hydrometer,salinomerer,fog collector,glassbar
Safety Devices Overheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator light
Power Source(K.W.) AC 1Ψ 220V 60/50Hz
1.1 1.5 3.5 5.5 7

Saler Company Information

Company : Sailham Equipment (Dongguan) Co., Ltd
Phone : 008676981105095
More Information : View
