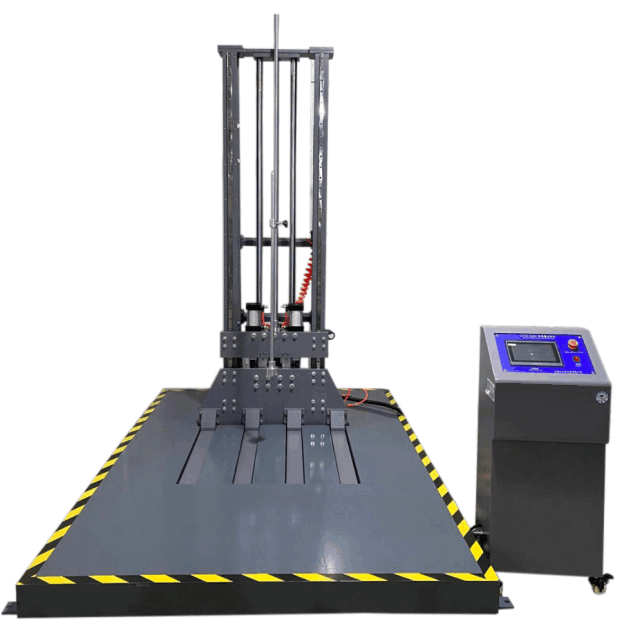

The zero drop test table adopts the plate double guide rail, electric or hydraulic lifting system, it’s suitable for the packaging test in larger size. It is convenient and fast for loading and unloading and achieve the edge, surface, angle lower height drop test; drop height can start from zero; this device has a stop alarm, low pressure alarm that can not start and other safety warning functions.
1. Main technical parameters.
Main technical parameters for zero drop test machine.
Drop height
0 ~ 1500mm adjustable
Maximum weight of specimen
100Kg or customized
Maximum size of specimen
1000 × 1200 × 1600 mm, or customized
Testing part
Edge, angle, face
Floor plate size
1500*1500*mm (for reference)
Motor
≤3kw
Machine dimensions
1550*2100*1550mm (for reference)
Driving mode
Motor drive up, pneumatic drop, 45# chrome steel
Protective device
Up and down induction-type protection device
Impact plate material
45 # steel, solid steel plate, thickness of 120mm
Height display
Touch screen display, and can set the height of the shutdown function
Arm structure
45 # steel, made by welding
Drop mode
Solenoid valve and pneumatic integrated
Drop height mark
Benchmark mark
Drop height error
≤±5mm
Power suplly
380V,7.5KW
Power source
Pneumatic
Remark
Other test systems meet the specification GB4857.5
