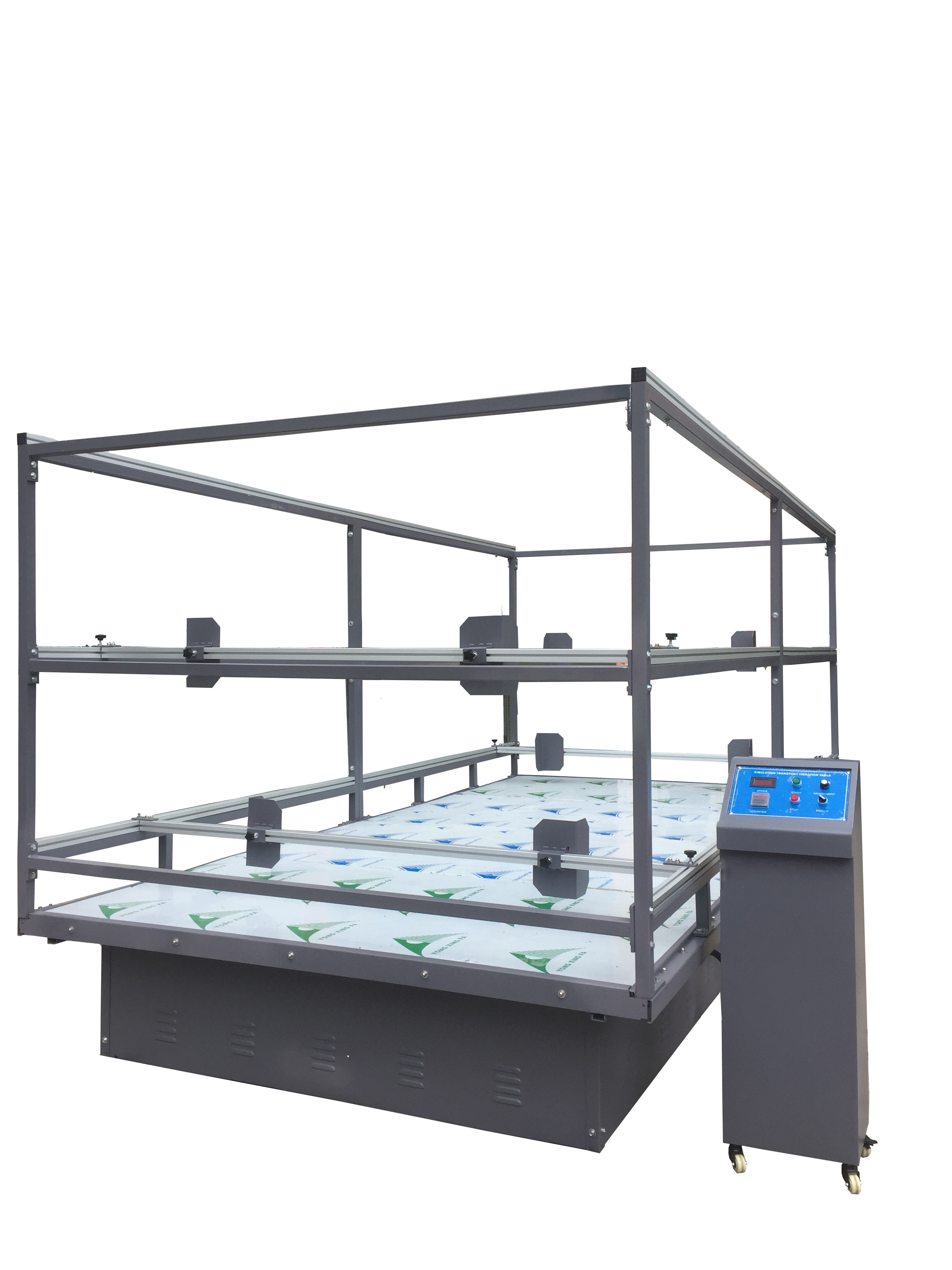

The Simulated transport vibration table is mainly simulated goods in the car for transport, encountered different road conditions such as: bumps, uphill, downhill, turn, etc.; the product in the car box produced the collision and squeeze among items, to cause damage to the product, so as to further improve the quality of packaging goods. In order to obtain the actual working conditions in the laboratory for the impact of the goods, so as to assess or confirm the packaging of goods.
Principle: This equipment is based on US and European transport standards, and to improve the manufacture refer to the similar equipment in United States.
Main parameters:
- Maximum test load (kg): 100 (Other bigger capacity can be customized)
- Frequency range: 100 ~ 300rpm
- Amplitude range (mm): 25.4mm
- Simulated speed: 25 – 40km/hr
- Vibration mode: reciprocating (commonly known as racing)
- Work table size: L180 * W110cm * H50cm (guide bar) (Other sizes can be customized)
- Work table material: SUS # 304 stainless steel
- External machine: electrolytic plate outside the machine, with baking anti-static powder spray paint for fixture aluminum alloy
- Time setting: 0seconds seconds to 99hour hours
- Start time setting: 0-15seconds
- Speed control mode: DC speed control
- Power supply voltage (V / HZ): AC 1 ∮ 220 / 50Hz
- Power consumption (KVA): 0.75
- Machine weight (kg): 250kg
- Environmental conditions: Temperature 5 ~ 40 ℃; Humidity ≤ 85% RH
- Standard: EN, ANSI, UL, ASTM, ISTA, GB / T4857.7-2005 and other domestic and international transport standards.
