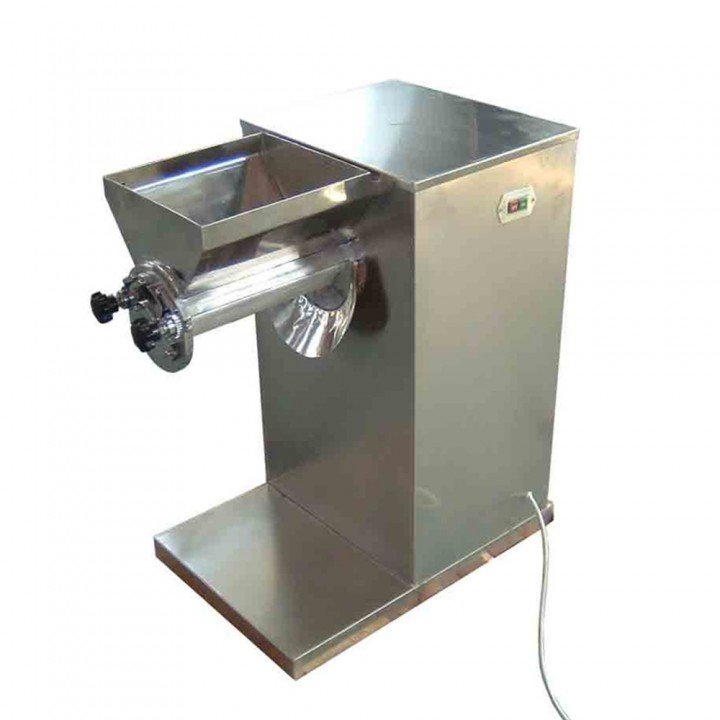

Laboratory mill

This mill is used to powder drying material or to modify powder granulation.

The machine has a rotary blade, which can be adjusted according to the type of material. Using a sieve screen that is well-defined and easily replaceable, it can be obtained with the desired granulation powder. Dynamic company mills The process is made in three types of conventional, timer and timer, with the ability to adjust the engine speed.

Technical details of the typical mill:

Capacity: 2 kg
Speed ​​range: Fixed speed 10 rpm
Direction of rotation: Left round
Sieve mesh: three mesh size 0.25 - 0.5 - 1 mm
Dimensions: 65 x 40 x 50 cm. Made from stainless steel
Weight of the machine: 35 kg
Electric Motors: Half Horses Made by Motogen (Iran)
Controls: Manual without timer
Engine and Electronic Controller: Made of Acid-Stainless Steel and Hygienic Grid

Technical specifications of the mill timer:

Capacity: 2 kg
Speed ​​range: Fixed speed 10 rpm
Rotation direction: Left round or right round
Sieve mesh: three mesh size 0.25 - 0.5 - 1 mm
Dimensions: 65 x 40 x 50 cm. Made from stainless steel
Weight of the machine: 35 kg
Electric Motors: Half Horses Made by Motogen (Iran)
Controls: Timer Manual
Engine and Electronic Controller: Inner Construction

Technical specification of engine timer with adjustable engine speed:

Capacity: 2 kg
Speed ​​range: 5 to 30 rpm
Rotation direction: Left round or right round with adjustable rotation time
Sieve mesh: three mesh size 0.25 - 0.5 - 1 mm
Dimensions: 65 x 40 x 50 cm. Made from stainless steel
Weight of the machine: 35 kg
Electric Motors: Half Horses Made by Motogen (Iran)
Control: Manual timer with motor controller
Engine and Electronic Controller: Inner Construction

Saler Company Information

Company : Pooya Far Azma
More Information : View
