The advantages of XZ680A horizontal directional drilling
1. The rack pinion push and pull. The transmission is smooth and reliable. The power head spindle floating improve the service life of drill pipe thread;
2. The line-control proportion of walking system ensures the security of the walk;
3. The slurry flow shift stepless speed regulation system is more convenient to adjust the flow of the slurry, save the slurry and reduce the environmental pollution caused by slurry flowing;
4. The push-pull pressure shift stepless speed regulation system adjusts the push-pull pressure according to different working conditions, fast and convenient, which also can protect the drill pipe thread from being damaged.
5. 45 ° rotating cabin can be realized, which make the tractor driver in driving indoor observe the vice action more conveniently. At the meantime, it improves the interior assembly and increases the radio audio and USB port and improve operation comfort.
Catalog
1.The introduction of the technology
2. The main technical parameters
3. The main parts subsidiary
4. The whole machine appearance and transportation
5. The accessory technical documents
1. Technical specification

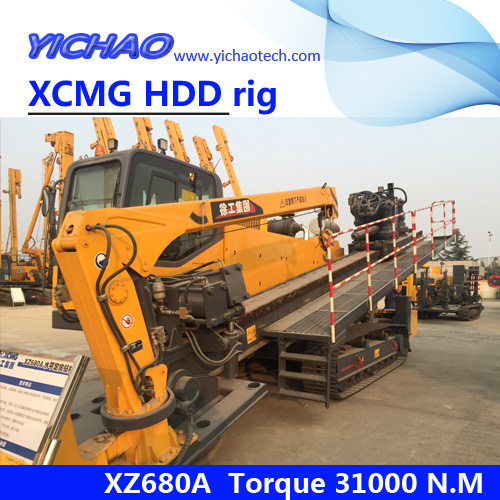

Product model: XZ680A horizontal directional drilling
Manufacturer: XCMG GROUP
XZ680A horizontal directional drilling is one-piece full load type design, which adopt the hydraulic pilot control and load sensitive control and a number of advanced control technology and the company’s proprietary technology. The main performance parameters and control technology has reached the domestic advanced level. Hydraulic system, transmission system, reducer, electric control system and other main components choose the brand name products at home and abroad. The quality is reliable.
One．The introduction of the technology
1.1 Chassis
Using steel tracks, South Korea Tongmyong walking speed reducer, traction, venue adaptable, stable and reliable performance.
Chain tread 3165 mm
Track Shoe Length 3930 mm
gauge of tracks 1825 mm
Creeper tread width 450 mm
Roller number 7 piece×2
Walking speed reducer South Korea Tongmyong TM22VC×2
Driving force 123kN
Climbing Capacity 30%
Walking speed 2.5km/h
Ground pressure 67kPa
The total quality of work 21T
