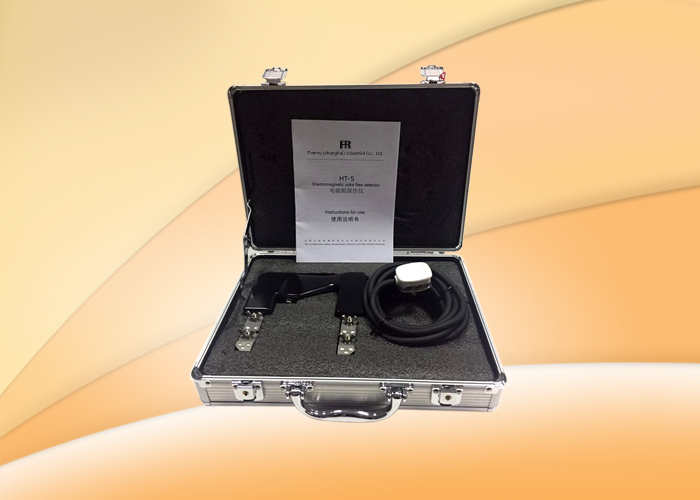

MAGNETIC CRACK DETECTOR AC YOKE KIT
MAGNETIC CRACK DETECTOR AC YOKE KIT
  • Seen : 219 View

0
MAGNETIC CRACK DETECTOR AC YOKE KIT

This product is used in electromagnetic flaw detector, magnetic particle testing of portable shell using the latest industrial high-strength plastic material, make its small size, beautiful appearance, light weight, strong sealing, low energy consumption, load current acuity 0.6 A, no-load current 0.9 A or higher), easy to observe (with LED light, effectively improve the sharpness of the detection area, intensity > 1000 Lux), long life, low heat, flexible (yoke front have four adjustable mouth, boxer and inclined 45 DHS design was adopted for the front in T face detection purposes).


Working voltage AC220V
Pole spacing 10 ~ 160mm
Weight 1.3Kg
Size 150mm*155mm*37mm
Power frequency ac lifting force >4.5Kg
Frequency 50~60Hz

Saler Company Information

Company : fanrayind
Mobile : 008618852858720
Phone : 008613601920731
More Information : View
Online order registration form
No comments have been posted yet
loading
Your comment has been sent
MAGNETIC CRACK DETECTOR AC YOKE KIT

This product is used in electromagnetic flaw detector, magnetic particle testing of portable shell using the latest industrial high-strength plastic material, make its small size, beautiful appearance, light weight, strong sealing, low energy consumption, load current acuity 0.6 A, no-load current 0.9 A or higher), easy to observe (with LED light, effectively improve the sharpness of the detection area, intensity > 1000 Lux), long life, low heat, flexible (yoke front have four adjustable mouth, boxer and inclined 45 DHS design was adopted for the front in T face detection purposes).


Working voltage AC220V
Pole spacing 10 ~ 160mm
Weight 1.3Kg
Size 150mm*155mm*37mm
Power frequency ac lifting force >4.5Kg
Frequency 50~60Hz
