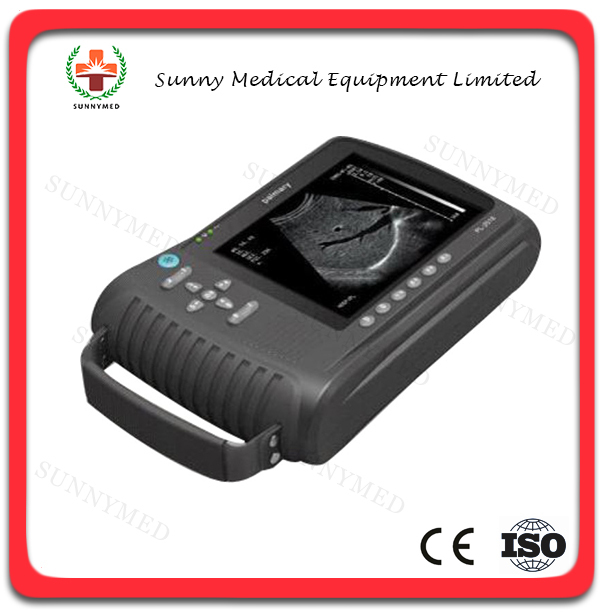

Palms mart weighting only 1.3KG, is distinguishable by its bright and clear image quality.
The interchangeable probes offer a wide range of diagnostic applications. This scanner is a
cost effective solution for family doctors, veterinary scanning. The complete software and
the high product versatility are available .
Specifications:
Scanning mode :Convex/Linear/ Micro-Convex
Monitor: 6.4inch TFT color LCD
Display modes BB+BB+MM 4B
Scanning depth :≥80mm
Gray scales: 256
Cine-loop :≥200frames
Image permanent storage: 32 frames
Image conversion : up/down,left/right,black/white
Local zoom : 2time both in real-time and frozen
Measurement: distance,circumference,area,volume,EF rate,heart rate
OB measurement :
Equine – GA (GSD)
Bovine – GA (BL, SL, HL)
Swine – GA (HL)
heep – GA (USD)
Cat – GA, EDD (HD, BD)
Dog – GA, EDD (GSD, CRL, HD, BD)
Port Pal-D video out, USB 2.0
Comment : date & time,name,sex,age,doctor,hospital, annotation
Wide application : abdominal,OB/GYN, urology, cardiology, small parts examination,etc
Weight: 1.3kgs
Dimensions(mm): 263×153×46,
Battery max working time(mm) :3hours(Max)
Standard configuration 20R/5.0MHz Micro-Convex
Optional :
40R /3.5MHz Convex
7.5MHz Linear
6.5MHz Rectal Linear
Video Printer
Extra Battery
Car Charger
