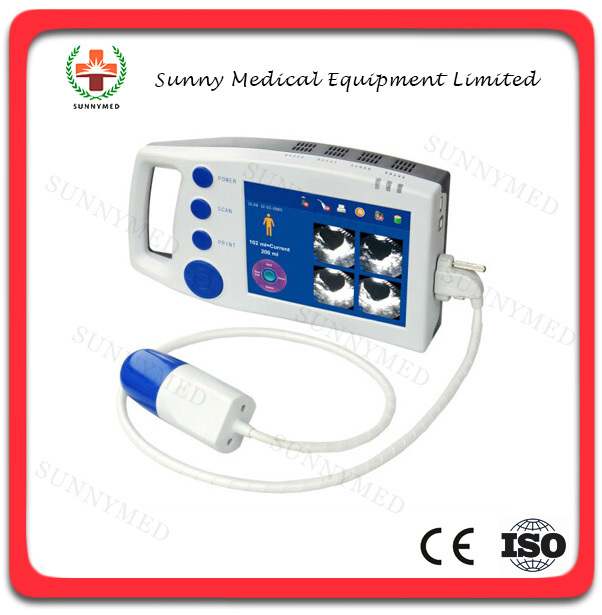

Bladder scanner is a portable device with advance 3-D Ultrasound technology and dedicated for
noninvasive measurement of bladder filled volume. It can speedily complete the detection of bladder
area through pre-scan of probe connected with the device and the display used color TFT LCD. Its
measured result can be printout with thermal printer and also can be stored in the built-in flash-disk to
send to the computer through USB interface. By this provides clinical data for judging the opportunity to
apply catheterization, which reduces the frequency of catheterization and risk of UTI. It is also intended
for evaluation of the residual volume after urination, evaluating treatment effect of a medicine or treating
plan. The power for the device comes from built-in battery.
Feature:
Light weight, easy to carry, accurate,safety,operating easily
Portable, design and battery-driven, it offer great convenience to use Save Patient info and image up to 100 cases
Display real-time bladder image and position in-phase
Automatically measurement and display its result. With USB interface can send the report to PC
Limitation of unnecessary catheterization Reduction rates of urinary tract infection Help in managing incontinence Enable wide diagnose and anatomic measurement of bladder
Most common application area: urinary incontinence, urinary retention, urinary tract infections
Obstetrics, Gynecology, Rehabilitation, Pediatrics,
Note: It cannot be used on wounded skin. For patients with hypertrophy of the prostate, space occupying disease or scars, there is a risk of
producing a result exceeding the given accuracy range.
Technical Specification:
1.Transducer freq: 2.6MHZ
2. Scan method : Mechanical scan
3. Sway angle: 120°±2°
4. Rotating angle: 180°±2°
5. Scan depth:≥140 mm;
6. module volume:128±10ml;(See Annex 1 module calibration)
7. Display screen: 8.0” TFT color LCD;
8. Power supply for the device: internal battery
9. Battery: Voltage 7.4V( standard value), capacity: ≥5200mAh;
Charge the batteries: charge for 3.5-4 hours full;
Full batteries: sustainable use for 4.5 hours(In the ready state);
10. Battery control: capacity instruction and alarm for lower power
11.Regarge device: power adapter ~220V±10%;
Output voltage 8.4± 0.1V;
12. USB interface: for saving data and upgrade software
13. Serial interface: for printer
14. Printer: for printing micro characters, graphic and image
15. Screen display: 4 pieces of cross-section ultrasound image , measurement result, real-time
date, time and hospital name.
16.Patient ID: 8 digits
17.Max. measurement: 999ml;
18.Measurement difference : 0≤V≤999ml, ±15%.
19. Measurement methods: After pre-scan, the measurement will be automatically down after
press “ scan” key for one time.
20. Selection of measurement location: A directive for detection of location will guide you to the object
zone before effective measurement while you make measurement.
21. Gender for male, female, Paediatric.
22. Language of interface: English
23. Dimension:320x180x65mm
24. Weight: 1.8 KG
