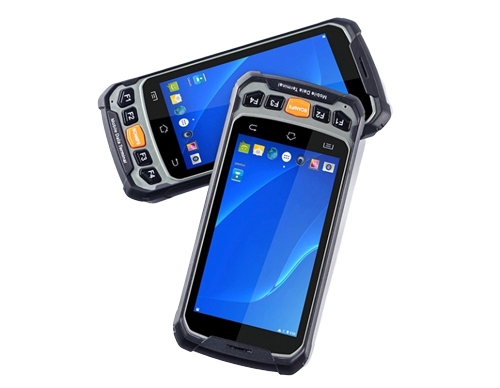

DL1095 Industrial PDA Handheld Reader

Important Performance

Type

DL1095 Industrial PDA HF/UHF Handheld Reader

Operating Frequency

1 of 3

UHF(Ultra High Frequency) 860~960MHz ISO18000-6C, EPC Class 1 Gen 2

HF(High Frequency) 13.56MHz HF: ISO14443A/B, ISO15693

LF(Low Frequency) 125KHz

Read-Write Performance

Reading Range

UHF: 0.1m ~ 21m, 70 feet maximum

HF: 0.1cm ~ 10cm

LF: 0.1cm ~ 10cm

Anti-collision

Read up to 800 to 1000 pieces of tags simultaneously

Antenna Polarization

Circular Polarized

RSSI

Received signal strength indication

SDK

Free SDK provided attached to the Reader

System features

Operating system

Android 8.1

Processor

Coretex-A53 (1.3GHz)

Memory

RAM

2GB

ROM

16GB

Expansion (Micro SD)

128G (Maximum)

Audio, Slots, and Ports

USB Ports

Yes

Slots

1 MicroSD Slot, 1 GSM/GPRS Slot

Camera

Extensible

1D Barcode

optional

2D Barcode

Backward 1D optional

Input/Output devices

Input devices

Color Touch screen, stylus, Trigger Button, Handwriting input

Output devices

4.7” Transmissive LCD, QVGA(720 x 1280)

Communication features

WiFi

2.4G/5G, IEEE802.11a/b/g/n (Optional)

4G

TD-LTE Band38/39/40/41FDD-LTE Band 1,2,3,4,7,17,20

3G

WCDMA / CDMA2000

Saler Company Information

Company : Daily RFID Co., Ltd
Phone : 00862086337193
More Information : View
Online order registration form
