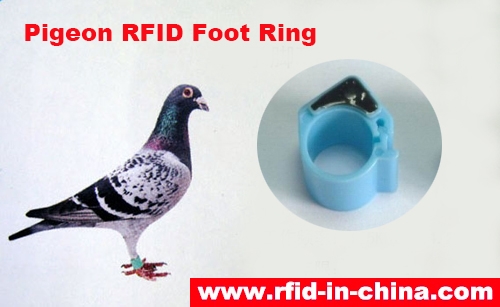

This mini Pigeon RFID Foot Ring is worn as a foot ring for poultry tracing, such as birds, chicken and so on. Also, it provides an accurate and effective way for fowl tracing such as pigeon.
This RFID animal foot ring is suitable for use in fowl breeding and tracing, as well as poultry racing. With a seal chip inside the tag to store of the data, the pigeon RFID tag can be scanned by RFID Reader within the read range from 3 cm to 30 cm. Thus, it avoids human error and provides a perfect solution in pigeon tracking and chicken tracking.
Specification
● Type: Contactless R/O or R/W
● Operating Frequency: LF(125KHz / 134.2KHz) or HF (13.56MHz)
● IC Available at 125KHz: EM4200, EM4100, EM4102, EM4305, EM4001, T5577, Hitag1, Hitag2, Hitag S, Hitag-u Advanced, TK4100, GK4100, others upon request
● IC Available at 134.2KHz: HITAG-S 256 Bit, HITAG-S 2048 Bit, others upon request
● IC Available at 13.56MHz:
HF: I-CODE (ISO 15693-3), Mifare 1K Classic (Mifare 1K S50), Mifare 1K EV1, Mifare 4K S70, Mifare 4K EV1, Mifare S20, Mifare Ultralight, Mifare Ultralight EV1, Ultralight C, Mifare DesFire 2K / 4K / 8K, Mifare plus 2K / 4K / 8K, Tag-it™ HF-I (ISO 15693-3), SmartMX, others upon request
NFC: NTag210, NTag213, NTag215, Ultralight ULT EV1, Ultralight-C, NTag216, NTag203, Sony FeliCa Lite-S, ST25TA02K, others upon request
● Size: dia.10mm/20mm
● Reading Distance: Up to 5~30cm (Depends on reader and IC type)
● Material: ABS
● Operating Temperature: -40º C to +80º C
● Storage Temperature: -40º C to +100º C
Competitive Advantage
1. Waterproof IP 68
2. Read distance: Up to 5~30cm (Depends on reader and IC type)
3. Flexible & easy-to-wear
4. 100, 000 times reading & writing
