Exhaust Fan

1.push-pull type Ventilation Fan for Livestock/Poultry Farm

2.The Ventilaton Fan Anti-rust and water-proof .

3.The Ventilation Fan has long service life.

4.The size & quality of Ventilation Fan could be customised.

ventilation fan data form:
Type Inch Blade Diameter
(mm) Noise
db Dimensions H*W*T
(mm)
900 30' 750 ≤70 1000*1000*450/400
1100 36' 1000 ≤70 1100*1100*450/400
1220 48' 1100 ≤70 1220*1220*450/400
1380 50' 1250 ≤70 1380*1380*450/400
1530 52' 1400 ≤70 1530*1530*450/400

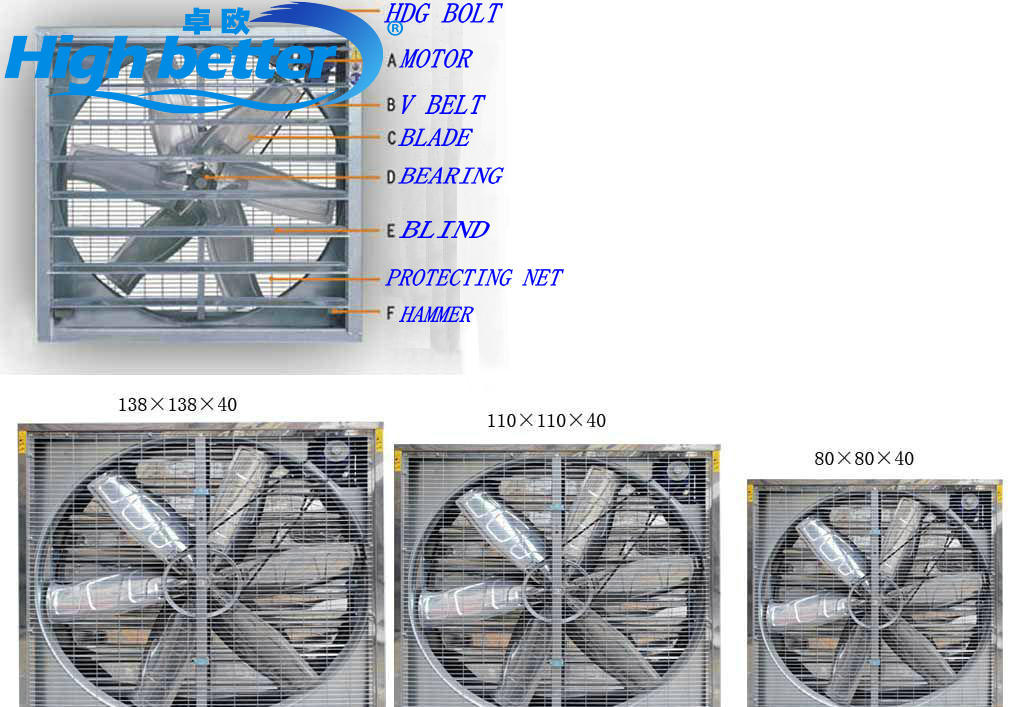

Ventilation Fan details :

1.Fan belt pulley is made from strength aluminum-magnesium alloy by die-casting in order to reduce the weight of blade and impeller and to improve cprrosion resistance.Special reinforced ribs pulley design to eliminate internal stress to improve rigidity and stability.

2.Motors which are high and reliable performance or customized as voltage and frequency are available.

3.Centrifugal device can open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume after closed.

4.Fan blades are tested by dynamic-balance tester. 6 pieces of mirror finished stainless steel blades, attractive and durable with big air volume. The Fan blades made by 304#/430# Stainless Steel,thickness: 1.2mm.Ensure the fan smooth running, lower vibration, less noise, increase stability.

5..Frame: Galvanized steel sheet, anti-corrosive and durable. Thickness: 1.0mm for the top and the other sides.

6.Shutter: Made of high strength hot-galvanized steel sheet, dust-proof and waterproof. Thickness: 0.7mm .
