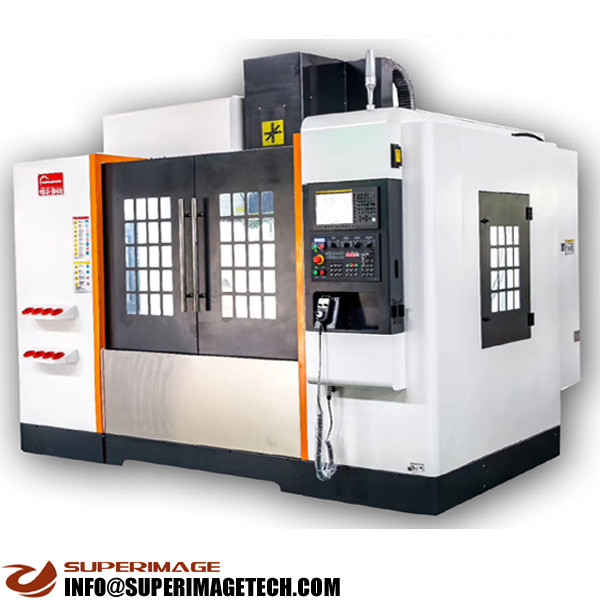

3-axis/4-axis/5-axis 1500*800*700 cnc milling machine(heavry+line rails)

Technical Data:
Yongshuo YSL-1580
Bed Size:
1700*800mm
X-Axis Traveling Distance:
1500mm
Y-Axis Traveling Distance:
800mm
Z-Axis Traveling Distance:
700mm
XYZ Axis Model & Applying:
XY-AXIS LINEAR RAIL
Z-AXIS HEAVRY RAIL(HUGE MILLING & CUTTING FORCE)
Besides being used for processing aluminum, flexible steel, copper, non-ferrous metal parts, alloy parts, plastic parts, gypsum parts, acrylic parts, dies, hand plates, etc.
Specially used for processing steel materials, stainless steel materials,, non-embroidered steel & cemented carbide materials, high hardness metals and alloys.
It is a multi-functional and multi-purpose CNC machine center.

Spindle Motor Power:
15.0KW/18.5KW
Spindle Speed:
0-8000 rpm belt connect
Tool Changer(Tool Magazine):
24 Arm Type; BT50
Control System:
FANUC,MITSUBISHI,SIEMENS,SYNTEC Four-axis function & five-axis function expansion interfaces by default intergrated and built-in in system.

Upgrade easily, Plug & play
Configurable Rotary Table:
5-axis cradle rotary table,digital control 4-axis rotary table, disk tailstock rotary table,thimble tailstock rotary stable, or synchronous double-head rotary table,etc

Φ125mm-Φ500mm
Machine Weight:
13000KG
