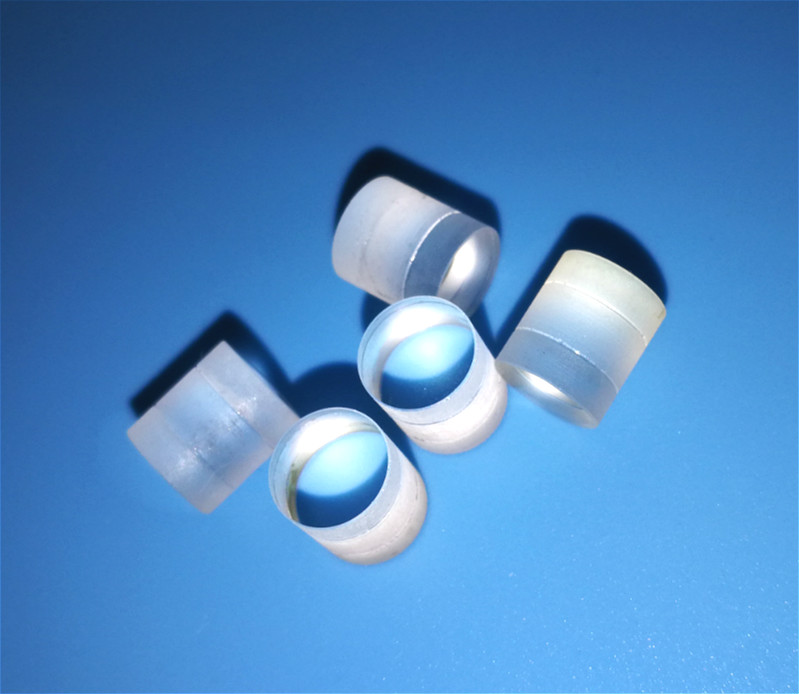

Triplet Lenses

Triplet Achromatic Lenses are designed for 1:1 conjugate ratios and utilize symmetry to correct for aberrations. They are made from a low index center element cemented between two identical high index outer elements. Each lens is edged down to f-numbers with reasonable aberration correction at increased fields. Some medical instrument will use micro triplet lenses.

Specifications:
Materials:Three kinds of optical glasses
Diameter:1.5—300mm
Diameter Tolerance:+/-0.1 mm
Thickness Tolerance:+/-0.5mm
Centring Error<3 Arc minutes
Surface Quality:20—10
Surface Figure:λ/10@633nm
Clear Aperture:90%
Coating: Specified by customers

Saler Company Information

Company : Changchun Yutai Optics Co., Ltd
Phone : 008643187911611
More Information : View
