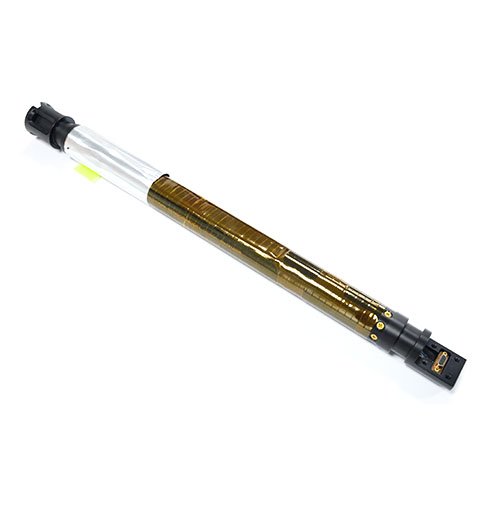

DS360 Rotary Directional Sensor

The DS360A is fabricated by 3 axis fluxgate magnetometer and 3 axis accelerometer,the output signal of the DS360A is digitized by a 24-bit high resolution ADC,the temperature drift and orthogonal compensation were carried out.It is designed to enable high accuracy measurement of the roll, inclination and azimuth orientation angles of a system to which it is mounted while operating between 0~150 ℃.

The built-in digital filter and compensation algorithm can remove the vibration and rotation interference signals,can accurately measure the different angles under vibration and ratation.

The DS360A can be customized the probe size,installation and digital output interface (UART,RS232).



Saler Company Information

Company : Qingdao ZITN Technology Co., Ltd
Mobile : 008618561815991
Phone : 008653268013909
More Information : View
