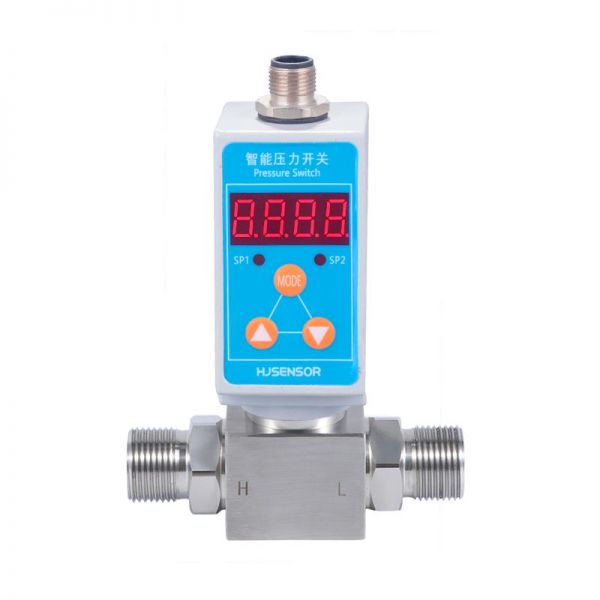

HPM560D intelligent differential pressure controller is an intelligent digital pressure measurement and control product which integrates pressure measurement, display, output and control.The product is A full electronic structure, the front end of the diaphragm with isolation piezoresistive pressure sensor, by the high precision A/D conversion, through the microprocessor operation processing, field display, and output one way analog and two way switch quantity.The intelligent digital pressure controller is flexible in use, simple in operation, safe and reliable.Widely used in water and electricity, petroleum, chemical, machinery, hydraulic and other industries, the pressure of the fluid medium for field measurement display and control.
Features
4 digit display of the current pressure value.
Switching quantity can be arbitrarily set between zero and full degree
The shell is equipped with node action LED for easy observation
Key adjustment and setting various parameters on site, easy operation
Two control point relay outputAnalog output (4 ~ 20mA) (optional)
Technical Parameters
Pressure Range : (0～3.5)MPa
Accuracy：0.5%
Overload：2 times pressure range of full scale
Pressure Type：Gauge pressure
Long-term Stability：≤0.1% /year
Supply Voltage ：24VDC
Display Mode：0.56’’ Nixie tube
Display Range：-1999～9999
Response time：<30ms
Environment Temperature：-20℃～70℃
Relative Humidity：≤80%RH
Interface Material：304 stainless steel
