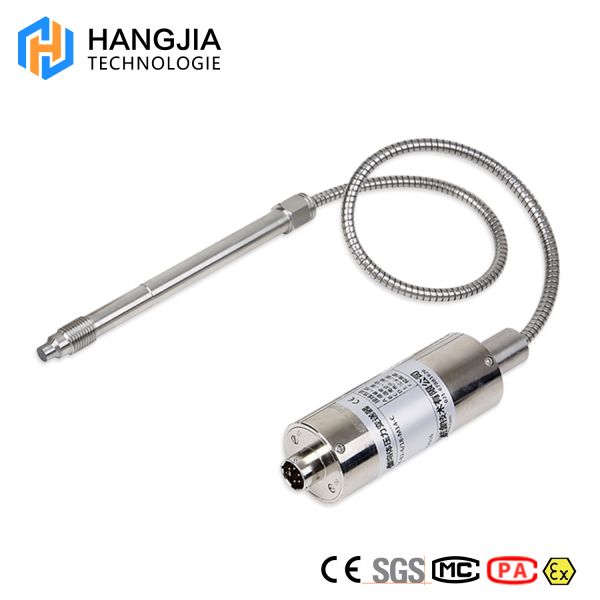

HPM129A-123 High Temperature Melt Pressure Transmitter instrument can be used in Melt-blown fabric production procedure to measuring and controlling pressure of high-temperature articles. It also applied in the fields of chemical fibers, plastics and rubber or high-temperature resistant fluid. By assimilating advanced technologies of similar international products and using imported raw materials and key elements, the instrument is characteristic of stable operation, reliable performance, high accuracy, strong output signal, excellent dynamic performance and slight high-temperature resistant zero drift. This series Transducers can joint with our Intelligence digital display pressure sensor instruments to control and measure pressure.Connecting screws and outgoing connectors are all universal, can replace similar import products.
Features
Accurate over 0.5%FS
Maximum temperature 400℃
High stability and reliability
17-4PH SS Diaphram
Technical Parameters
Pressure Range: 0~3.5MPa...150MPa
Overload: 1.5 times of full range
Accuracy: ±0.5%FS
Output Signal: Two-wire 4~20mA, Three-wire voltage
Supply Voltage: 24VDC(12~36VDC)
Response Time: ≤5ms
Output Resistance: 350Ohms±10%
Internal Self-calibration: 80%FS±1%
Insulation Resistance: 200MΩ, 100VDC
Max. Diaphragm Temperature Resistance: 400℃
Diaphragm Material: 17-4PH Stainless Steel with Coating
Electrical Connection: 6-pin Aviation Plug
Process Connection: 1/2-20UNF, M14*1.5, M18*1.5 etc.
