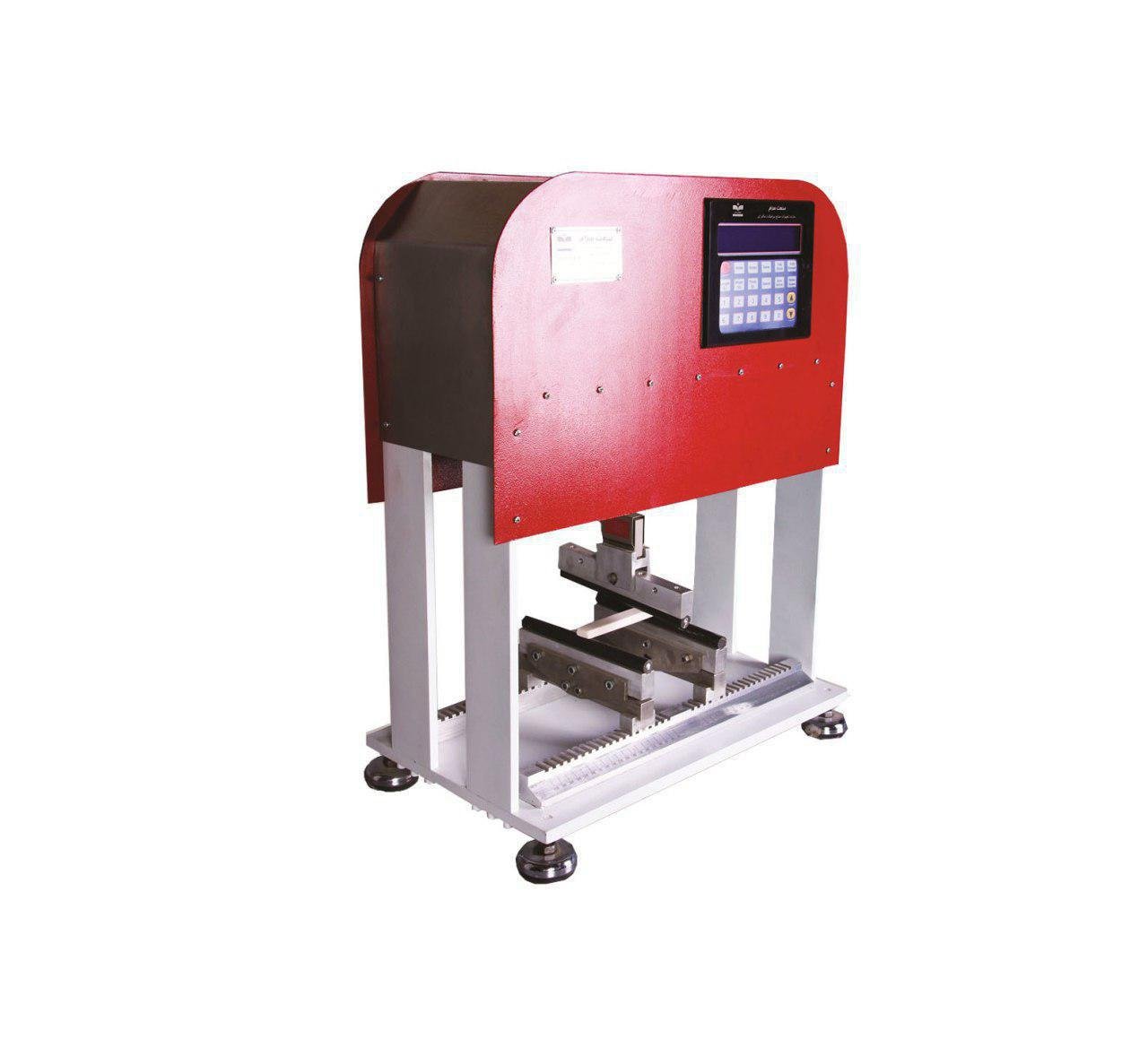

Digital Flexural Density Sensor 100 Kg

This device is designed to measure the flexural strength of a specimen according to ISO10545-4, ASTM C 84-649, DIN51030 and EN 520. It is used for raw material samples.
Technical Specifications:
• Used to measure bending strength and failure modulus of ceramic samples based on three-point bending strength
• Suitable for flexural strength of standard samples of ceramic tiles, sanitary napkins, ceramic tiles, engineering ceramics and other ceramic parts.
• Load cell with adjustable loading speed
• Calculates the failure strength and bending modulus automatically and displays it on the device display
• Scan to the application to record and save test results with the ability to save 100 test results on device memory
• The maximum force applied is 100 kgf
• Maximum distance between jaws 400 mm
• Each jaw is 20 cm long
• Ability to calibrate
• The accuracy of the device is 1 gram
• Three-phase electro-motor power of 187 watts
• The power required for a single-phase 220 V unit
• Dimensions of the device 54 * 70 * 30
• Weight 65 kg
