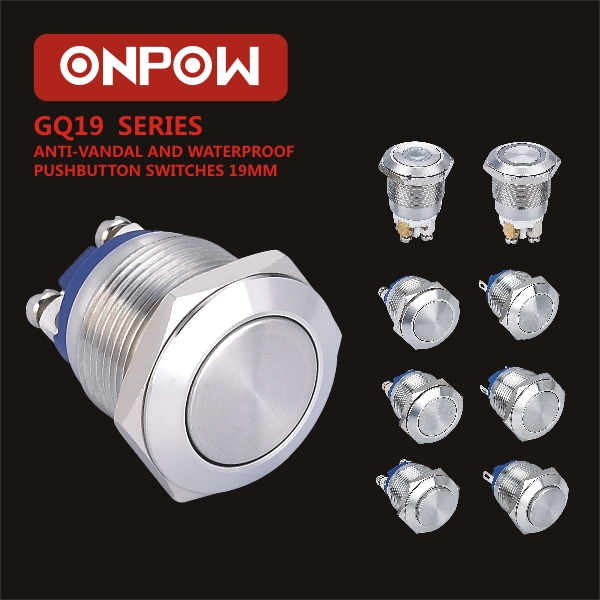

GQ19 series

1.Switch rating: Ui:250V，Ith:5A
2.Mechanical life: ≥1,000,000 cycles
3.Electrical life: ≥50,000 cycles
4.Contact resistance: ≤50mΩ
5.Insulation resistance: ≥100MΩ(500VDC)
6.Dielectric strength：1,500V，RMS 50Hz，1min
7.Operation temperature: - 25 ℃~55℃ (+no freezing)
8.Operating pressure: about 4N
9.Operation travel: about 1.8mm
10.Torque：about 0.8Nm Max.applied to nut
11.Front panel protection degree：IP65，IK06
12.Terminal type: Screw terminal/Pin terminal (2x0.5mm)
