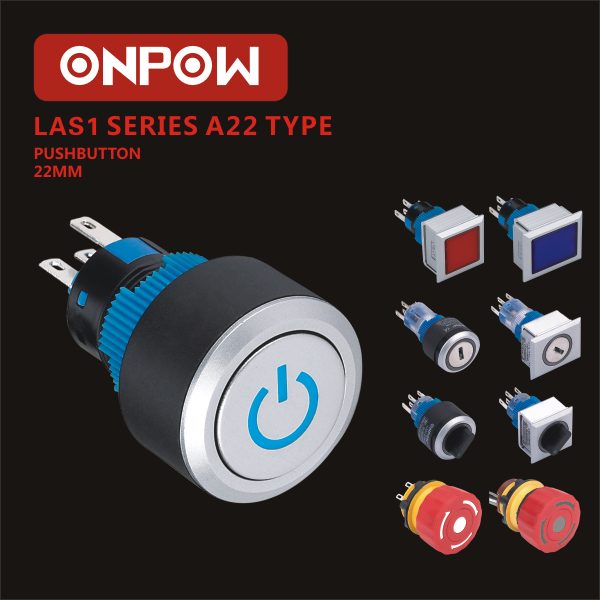

LAS1-A22 series
LAS1-A22 series
  • Seen : 111 View

0
LAS1-A22 series

1.Switch rating: Ui:250V，Ith:5A
2.Mechanical life: ≥1,000,000 cycles
3.Electrical life: ≥50,000 cycles
4.Contact resistance: ≤50mΩ
5.Insulation resistance: ≥100MΩ(500VDC)
6.Dielectric strength：1,500V，RMS 50Hz，1min
7.Operation temperature: -25 ℃~55℃ (+no freezing)
8.Operating pressure: about 1.7N(1NO1NC)，about 3N(2NO2NC)
9.Operation travel: about 3 mm(push button)
10.Front panel protection degree：IP40(IP65 made to order )
11.Terminal type: Pin terminal (2.8x0.5mm)

Saler Company Information

Company : Onpow Push Button Manufacture Co., Ltd
Mobile : 008613587700386
Phone : 008657762625051
More Information : View
