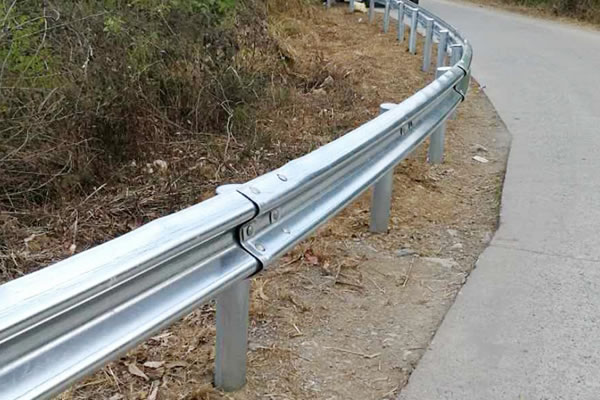

Two Wave Highway Guardrail
Double Wave Beam Metallic Guard Railings Hot Dipped Galvanized
Two Wave / Double Wave Beam Guard Rail is a semi rigid barrier, popularly used as highway safety barrier system applied in eliminating the threat from roadside hazards.
The Double Wave Beam Metallic Guard Railings is a type of guardrail designed. It is made up of two w-shaped galvanized steel beams that are connected using posts and a top rail. The two beams create an angular barrier that prevents vehicles from driving over the edge. The main specifications and dimensions are: Total length: 2,500mm; Top rail height: 812mm; Post spacing: 3m; Bottom rail height: 154mm; Beam width: 200mm; Beam thickness: 5mm.
Applications
The double wave steel plate beams are installed and fixed along the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions. Using the double wave or two wave beam guardrail can absorb the crash energy, reduce risk and the deformation of the impacting vehicles.
We supply w-beam double wave single face single sided guard rail with beam post, spacer and hardware all galvanized.
