Corrugated Steel Beam Barrier
Corrugated Steel Beam Guard Rail Safety Barriers with Delineators
Corrugated steel beam barriers (CSBBs) are traffic barrier systems designed to absorb impact and deflect vehicles away from a structure without causing catastrophic failure of the barrier or significant damage to the vehicle. They are constructed of high strength steel beams with corrugations that fold in on impact, allowing the system to absorb the energy of a vehicle while limiting the amount of damage done to both the barrier and the vehicle. CSBBs are primarily used to protect critical infrastructure, such as bridges, highways, and power plants, from vehicle-borne attacks. These barriers are also often used to prevent large vehicles from leaving roads and highways. Compared to traditional concrete barriers, CSBBs are less likely to cause serious injury to drivers in the event of a crash, and are much more cost-effective to install and maintain. Furthermore, CSBBs can be quickly and easily reconfigured to change the size and shape of the barrier as needed.
We supply corrugated steel beams for safety barrier contracting company and state network highway projects in various countries.

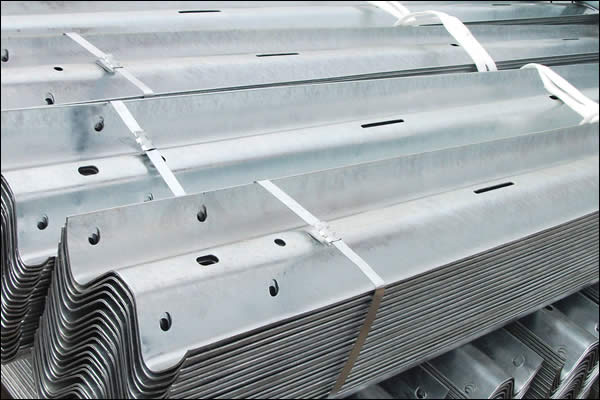

Corrugated Sheet Steel Beams for Guardrail Barriers
Our corrugated sheet steel beams conforming to the requirements of AASHTO M180-78 Class A for Highway Guard Rails Crash Barrier. The base metal nominal thickness of 2.67 mm and Type 1, with zinc coated of 550 g/m2 minimum-spot and of W-Beam shape. The corrugated steel beam guardrail must have been submitted to official crash test.
The steel posts with corrugated beams conform to the requirements of AASHTO M183 and galvanising be in accordance with AASHTO M111.
The fittings (bolt and nuts) conform to or exceed requirement of ASTM A 307 and shall be hot dip zinc coated in accordance with the requirement of AASHTO M232M, Class C. The corrugated steel beam guardrails are supplied and delivered completed with bolted warning reflectors, steel, posts and metallic spacing device and bolts etc.
