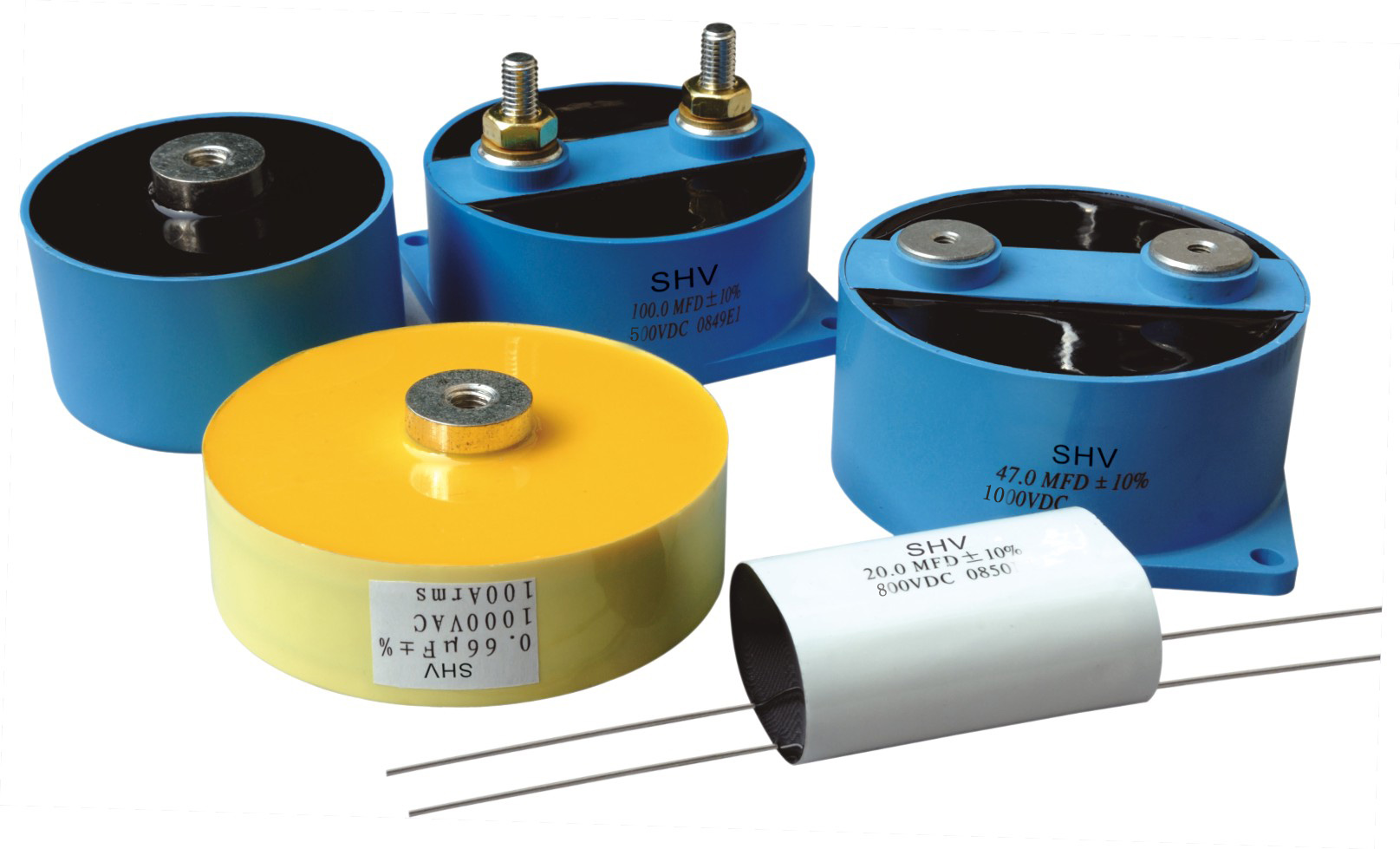

Plastic case spec

Construction: Non-inductive wound metallized polyester or polypropylene
Case : Self-extinguishing plastic case(UL 94-V0) filled thermosetting resin.
Terminal : Male Connection(M8×20mm max torque 8.5Nm)
Female threaded connection (M5×7.5mm max torque 2.5Nm)


Electrical Characteristics:
Rated Voltage: 300V-3000V (DC)
Capacitance :0.22-400MFD
Tolerance:±10%
Insulation voltage : 7kVrms/60sec/50Hz (between shorted terminals and earth)
Test Voltage: 150% of rated voltage for 10 seconds at 25℃
Operating Temperature : -40℃ to +105℃

Saler Company Information

Company : XIAN STATE IMPORT & EXPORT CORP
Mobile : 008613324567667
Phone : 00862985325590
