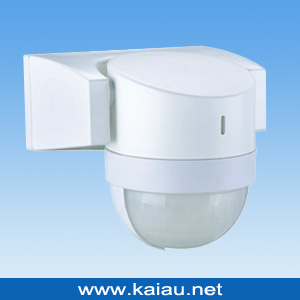

Wall surface sensor Switch (KA-S20)
Wall surface sensor Switch (KA-S20)
  • Seen : 193 View

0
Wall surface sensor Switch (KA-S20)

KA-S20 light control switch with sensor specifications:
Power source:220-240V/AC,100-130V/AC
Rated load:3000W.Max(220-240V/AC),1200W.Max(100-130V/AC)
Power frequency:50/60Hz
Detection angle:120°
Detection distance:15m max(<24°C)
Time-delay: Min:10sec to Max:6min~9min(adjustable)
Light-control:<15LUX-daylight(adjustable)
Power consumption:0.45W(working);0.1W(static)
Detection moving speed:0.6-1.5m/s
Working temperature:-10~+40°C
Relative humidity:<93%RH
Installation height:1.5m-3.5m

Product introduction;
The product adopts 1 high sensitivity detector, integrated circuit and SMT technology; It utilizes infrared energy from human body as its controlling signal source, when one enters the detection range, it can start controlled load at once, it can identify day and night automatically, it is easy to install and use field is wide. It gathers automatism, convenience, safety, energy
Saving and practicality.
