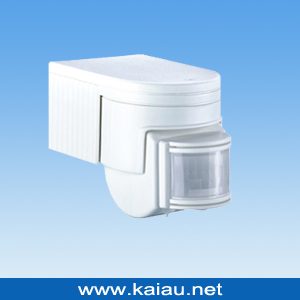

Wall surface sensor Switch (KA-S23)
Wall surface sensor Switch (KA-S23)
  • Seen : 204 View

0
Wall surface sensor Switch (KA-S23)

1. Power source: 100V/AC~130V/AC; 220V/AC~240V/AC
2. Power frequency: 50/60Hz
3. Detection range: 140°/180°
4. Time-delay: Min:8sec±3sec;Max: 7min±2min(adjustable)
5. Ambient light: <3LUX~2000LUX(adjustable)
6. Detection distance: 12m max(<24°C)
7. Rated load:800W(100-130V/AC);1200W(220-240V/AC)
8. Working temperature: -10~+40°C
9. Working humidity: <93%RH
10. Installation height: >1.8m-3.5m
11. Power consumption: 0.45W(static 0.1W)
12. Detection motion speed: 0.6-1.5m/s

Product introduction:
The product is a new saving-energy switch; It adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is made up of up and down, left and right service field. It works by receiving human motion infrared rays. When one enters the detection field, it can start the load at once and identify automatically day and night; Its installation is very convenient and Its using is very wide. It has functions of power indication and the detection indication.

Saler Company Information

Company : Ningbo Haishu Kaiau Electronics Co., Ltd
Mobile : 008613486005610
Phone : 008657487246943
