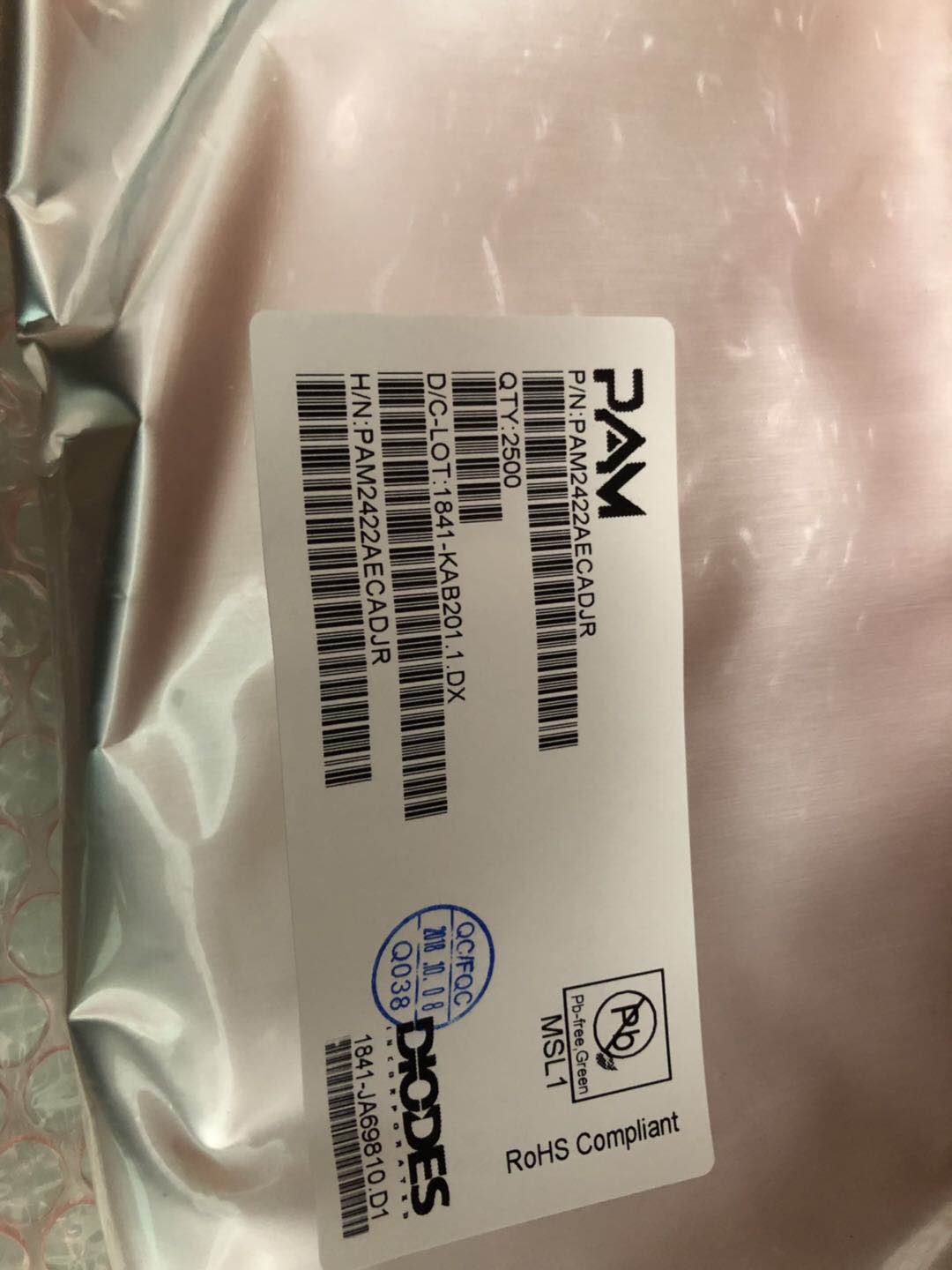

PAM2422AECADJR
  • Seen : 194 View

0
PAM2422AECADJR

The PAM242x devices are high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs. The PAM242x includes an integrated power MOSFET that supports peak currents of up to 3A/4.5A/5.5A.The PAM242x utilizes simple external loop compensation allowing optimization between component size, cost and AC performance across a wide range of applications . Additional functions include an externally programmable soft-start function for easy inrush current control, internal over-voltage protection (OVP), cycle-by-cycle current limit protection, under voltage lock-out and thermal shutdown.

Key Features
Greater than 90% Efficiency
Adjustable Output Voltage Up to 24V
Internal 24V Power MOSFET
Peak Current 3A,4.5A,5.5A
520kHz Frequency
Built-in Over-Voltage Protection (OVP)
Open Protection
Programmable Soft-Start Function
Thermal Shutdowns
Under-Voltage-Lockout
Over-Current Protection
SOP-8(EP) Package
