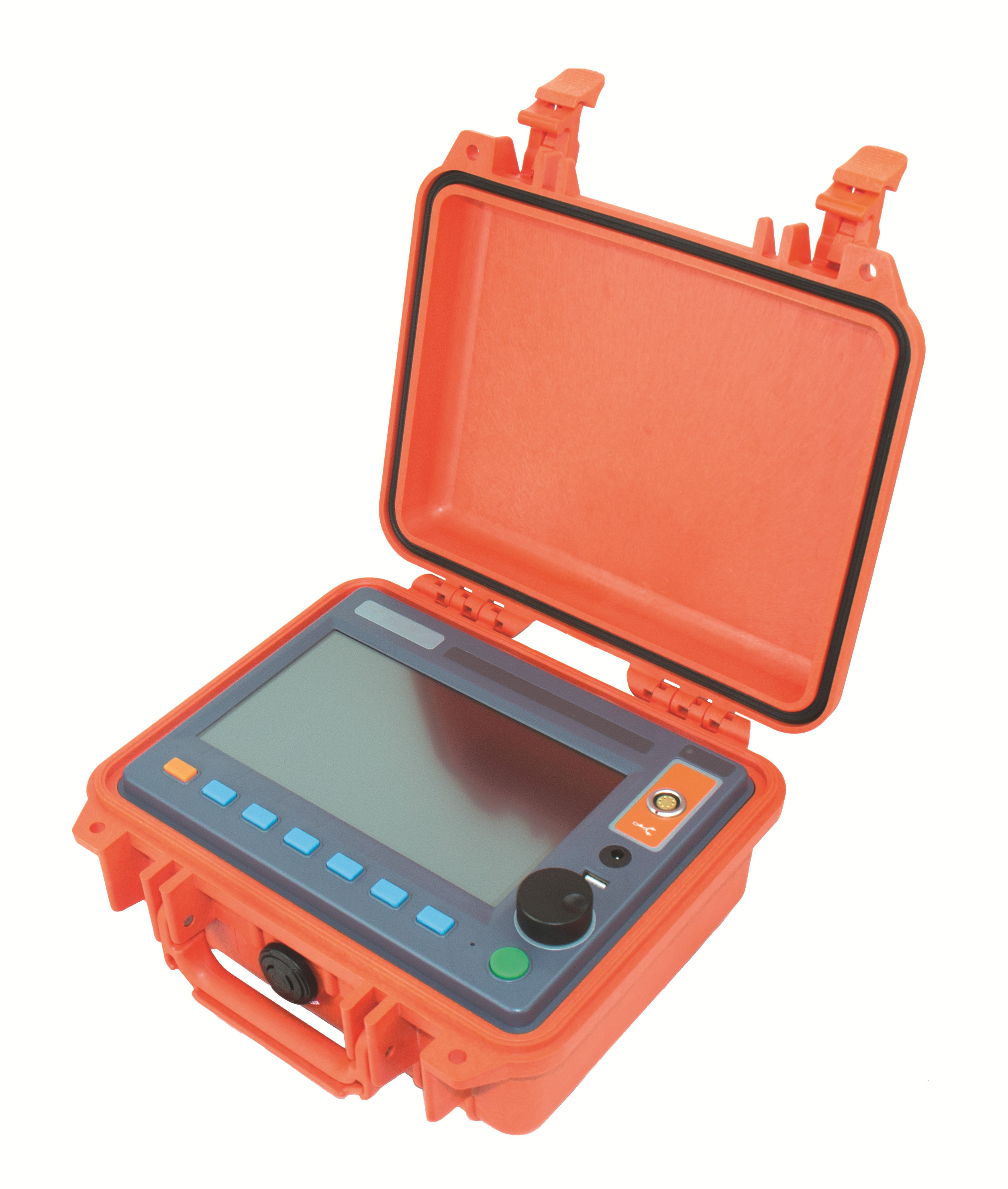

The PCLC-906D Power Cable Fault locator is an easy operation device used for distance locating . It’s easy to operate,support both touch screen/button operation and with friendly interface.
Low voltage pulse mode (TDR ) can be used independently; In impulse current mode (ICM), it needs to be used with HVSG-500GN series high voltage signal generator; In the multiple impulse mode(MIM) must also be tested with PCLC-900C cable multiple impulse filter coordination; After the distance measurement is completed, the PCLD-904P series digital multifunctional cable fault pin-pointer shall be used for accurate point pinpointing. Together, they form a high-performance cable fault finding system that offers a variety of innovative features.
FUNCTION FEATURE:
Multiple distance locating method:
Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity.
Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire
Multiple impulse method: improvement of the SIM method.Waveform is clear and easy to identify, high ranging accuracy.
400MHz real-time sampling
Advance tech.Upgrading for SIM method
Max. 0.1m measurement resolution,PCLC-906D has small blind zone and is special for the short cable and nearly-terminal fault cable
Auto measurement function
Automatic selection of appropriate range and gain, given fault location, easier testing.
Only low voltage pulse mode supports this mode.
Automatic calibration function
Automatically analyze the characteristic waveform of the fault waveform and display the possible fault location .
Only low voltage pulse mode (TDR) supports this mode.
Enhance the picture-in-picture temporary comparison function
PIP copy（pic. temporary storage). There'll be a main window and three temporary storage windows could check three waveform at same time.
Support low-voltage pulse and pulse current waveform comparison function, fault distance multi-direction verification, more accurate judgment.
Overall display function
When the waveform zoom, the overall waveform is displayed at the same time, which is more convenient for calibration and ranging.
Touch screen and press key operation
Touch operating screen with smart gesture operation
Support cursor drag-drop function and double-click function,easy to locate
Big color LED screen, friendly interface
Waveform clear, especially in the multiple impulse test, multiple waveform using different colors, easier to identify
8" LED screen,bright with 1500cd/m2 to view under sunshine
Support automatic backlight brightness adjustment function
Waveform storage and PC communication
A large number of waveforms can be stored in the machine
Use USB disk to export waveform data
Waveform storage and communication with computer.
Provide computer background management software to manage data dumped by U disk or online data.
Power management
Back light weakens if no operation in 1 min and power off in 30 min. if no operation.
When the battery is under voltage, the instrument will automatically shut down to protect the battery.
Built-in Polymer Lithium-ion battery.
Working time could reach 10 hours for each use.
Solid case, light and portable.
SPECIFICATION:
Working mode: low voltage pulse(TDR), pulse current(ICM), multiple pulse(MIM).
Signal gain adjustment range: 70dB.
Low voltage pulse emission voltage: 30V.
Measurement error: ± (0.5%×L+ 1M),L≥20m
Low pressure pulse pulse width: 40ns~ 20.5us
Highest resolution: 0.1m.
Maximum sampling frequency: 400MHz real-time sampling.
Maximum ranging range: 100km.
Wave speed setting range: 100m/ US ~300m/us
Ranging blind area: 2M.
Number of waveform saved: 100 pcs
Communication interface: USB, Bluetooth (optional)
Power supply: lithium-ion battery pack, nominal voltage 7.4V,6000mAh.
Battery power supply time: Use a fully charged polymer lithium ion battery, can last for more than 10 hours (with the battery aging, continuous service time will be reduced).
Charger: input AC220V, 50Hz, charging current 2A, charging time 6 hours.
Volume: 274×218×81mm
Quality: host unit 2.6kg
Conditions of use
Temperature: -10℃ ~ +40℃
Humidity: 5% ~ 90% RH (25℃)
Altitude: H <4500m
