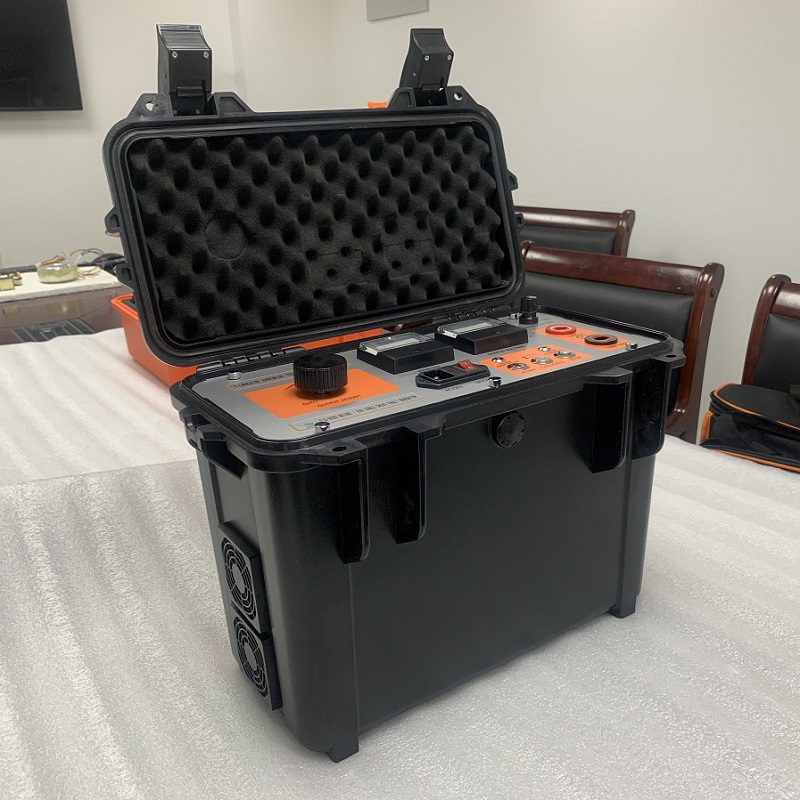

FLD-902D EHV CABLE SHEATH FAULT PINPOINTING GENERATOR

Good solution of the pinpointing of single phase to earth fault as signal transmitter and it can also matched with FLD-903P EHV cable sheath fault pinpointer to do sheath fault pinpointing.



1.1 Feather

Built-in high voltage constant current source, the output voltage and current can be adjusted continuously, allowing long-term short-circuit operation.

With ground locking, high voltage zero start and other multiple safety protection functions

Provide signal source for the fault point of the EHV cable sheath.

The transmitter can be powered by mains and generators, and the sensor and receiver can be powered by dry batteries

Light weight and easy to portable.



1.2 Specification



Accuracy : 0.2m

Output frequency:1Hz

Open circuit voltage: effective value of fundamental wave 0~2800V

Pulsating DC: peak 8kV,amount to 10kV phase voltage peak

Shirt circuit DC: effective value of fundamental wave 0~35mA (pulsating DC,peak

100mA)



Transmitter power supply: AC 220V mains, can be connected to generator (output power ≥1500W)

Max. Power:900W

Dimension: transmitter 417mmx234mmx318mm

Weight: transmitter 16.8kg

Conditions of use: Temperature :-10℃-40℃, humidity: 5-90% RH, altitude <4500m
