Place of Origin: Zhejiang, China (Mainland)
Brand Name: SUNTREE
Model Number: Solar-CMMM-14 IP67 cable connector solar
Type: Solar
Application: solar power IP67 cable connector solar
Gender: Male & Female IP67 cable connector solar
Rated current: 30A
Withstanding Voltage: 1000vdc of IP67 cable connector solar
Contact Resistance: ≤0.3mΩ
Protection class: Class II
Temperature Range: -40 C~+90C
Protection Degree: IP67 IP67 cable connector solar
Unmating Force: 200 Newton IP67 cable connector solar
Contact material: Copper,silver plated of IP67 cable connector solar
IP67 cable solar connector solar power system male and female cable connectors,solar cable connector IP67 solar
Simple on-site processing.
accommodates PV cable with different insulation diameters.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
TUV and UL approved.

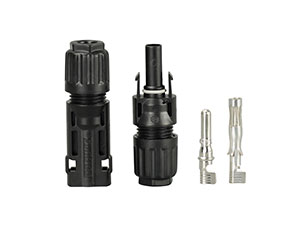

Solar connector Multi-Contact Connectors
Samlex's Solar connector-2 Kit contains 1 male and 1 female solar panel connector. IP67 cable solar connector solar power system male and female cable connectors,solar cable connector IP67 solar is easy to install and uses “snap in” safety locking tabs to lock two mating
connectors, thereby avoiding unintentional disconnection. Also when IP67 cable solar connector solar power system male and female cable connectors,solar cable connector IP67 solar locked, the mating
contacts are sealed against ingress of dust and water.
Specifications are as follows
IP67 cable solar connector solar power system male and female cable connectors,solar cable connector ip67 solar
•Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with
outer insulation diameter of 3 – 6 mm
•Contact diameter -4 mm
•Maximum rated current - 30 A
•Maximum system voltage - 1000 V
•Degree of ingress protection when connected and properly locked - IP67
•Temperature range 40°C to +90°C
•TUV Rheinland – type approved, UL listed.
