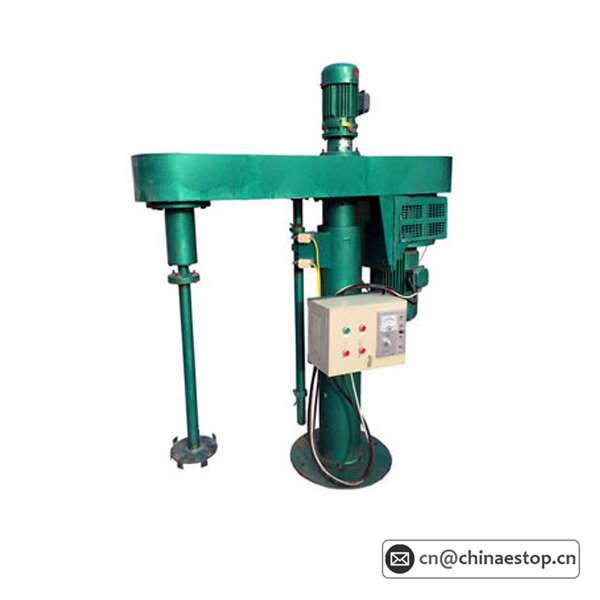

Resin Mixer Machine is a kind of machine can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely. High speed mixer is suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.
Type : 1)Hydraulic 2) Mechanical
Resin Mixer Technical Data
Size : 1600*400*2000㎜
Net weight: 400㎏
Rising&falling distance: 0-750㎜
Key shaft speed: 0-1200r/min
Projecting dis outer diameters: 220㎜
Max volume: 300㎏/600㎏
Speed reducer: 1.1kw
Speed reducer model: Cycloidal pin wheel,BLDO-11-1.1kw
Key motor power: 4.0kw/7.5kw
adjustable speed motor: 125-1250r/min
Torque: 25.2N.m/47.7N.m
Electromagnetic adjustable speed controller: Knob type
